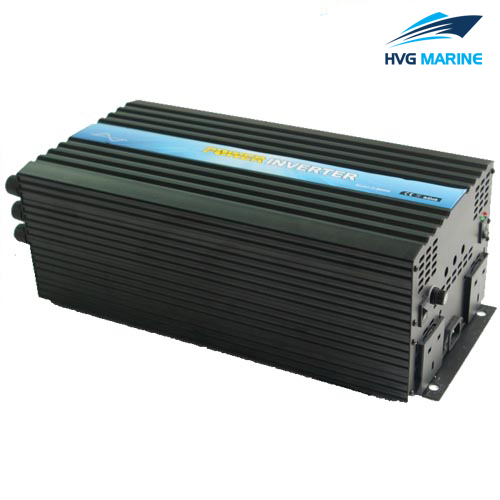

HVG MARINE ELECTRIC EQUIPMENT 0020: 24VDC Marine Inverter

Application

This marine Inverter mainly used as inverter power supply for relative equipment on various offshore platforms,ships.

Introduction

This kind of marine inverter is designed by input 24VDC,through high frequency power conversion,using dual feedback loop structure which controlled by latest MCU control units. The output power can be 600VA,800VA,1KVA,1.2KVA,1.5KVA,2KVA,3KVA and also OEM service is available.

24VDC Marine Inverter Service Condition

Working temperature	-10℃～50℃
Storage Temperature	-40～85℃
Relative humidity	≤90%(40±2%)
Atmospheric pressure	70～106Kpa
Transverse inclination	±15°
Trim	±5°
Rolling	±45°(Cycle 5～12S)
Pitching	±10°(Cycle 5～7S)

Technical specification:

Technical Data

Input Voltage	24VDC(20VDC~32VDC)
Output Voltage	220±1%
Frequency	50±0.5%(OPtional)
Waveform	pure sine wave
Total harmonic distortion	2% Resistive load
Transient response	≤60ms
Efficiency	≥82%(Rated Test)
Protection Grade	IP22
Insulation Level	Input to Output ≥AC1500V Output to Shell ≥AC1500V Input to Shell ≥AC500V
Protect Function	1 DC: DC high and low voltage shutdown 2 short circuit: automatic current limiting, automatic recovery after short circuit 3 overload: 105% ~ 125% overload for 10S 4 over temperature: the temperature of the radiator is more than 90℃. 5 fan PWM speed control 6 DC anti reverse-plugin protection
