HVG MARINE DECK EQUIPMENT 0070 – Hydraulic Waterfall Mooring Winches:

Have a rugged design, heavy duty split bronze bearings and amply dimensioned brakes. The operating mechanisms for brakes and cluthes are desgined for easy and safe manual operation, but may also be remotely operated by hydraulic cylinders. The brakes are easily adjustable, and all transferred of external forces to the deck construction is via the foundation bolts. No special welded steel constructions, more flexible for variations winch may occur. This arrangement also has the benefit of making transportation of the winches simpler and less expensive. The manual cluth operating is with spindles for marine winches for winches from 16 tonnes pulling power and upwards. The winch design provides easy access to all points for lubrication and inspection. Gear may be delivered as open type with steel protection cover, or as totally enclosed gears with oil bath.

Technical specification:

Main Technical Specification:

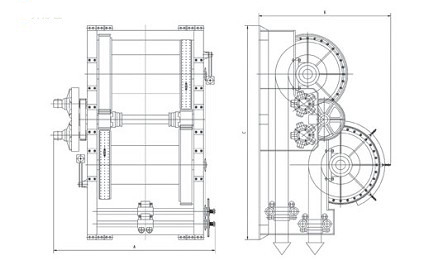

Type	Rated pull(kN)	Nominal speed(m/min)	Drum capacity(mm×m)	Holding load(kN)	Motor power(kW)	Main dimension(mm)	Weight(tons)
HS1-16	160	7.5	28×500	457	45	3200×4050×2200	22.5
HS1-20	200	7.5	30×500	525	55	3200×4050×2200	23.5
HS1-25	250	7.5	32×550	598	75	3600×4350×2580	27.8
HS1-32	320	7.5	36×600	756	90	3600×4500×2600	29.6
HS1-40	400	5	40×750	934	75	3700×4800×2860	35.6
HS1-50	500	5	52×750	1460	110	3900×4900×3000	39.8
HS1-63	630	5	54×850	1700	110	4000×5100×3100	42.6
HS1-80	800	5	58×1000	1960	132	4250×5300×3300	44.7
HS1-100	1000	5	64×1000	2310	180	4550×5500×3450	46.8
HS1-125	1250	5	70×1200	2860	220	4850×5800×3700	52.5
HS1-130	1300	5	72×1200	2920	220	5000×6800×3800	57.2
HS1-160	1600	4	82×1500	3786	220	5200×7000×3860	63.6
HS1-200	2000	4	90×1500	4560	250	5350×7200×4000	72.2
HS1-250	2500	4	102×1500	5860	300	5500×7450×4200	78.5
HS1-300	3000	4	110×1500	6810	360	5800×7600×4200	82.6
