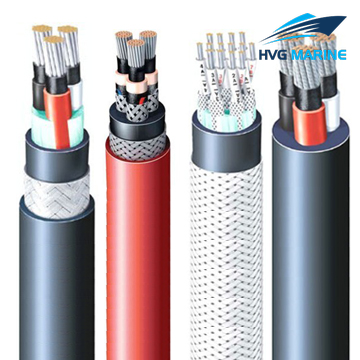

HVG MARINE CABLE 0072:  Marine Telecommunication Cable

SPECIFICATION & STANDARDS

• IEC 60288 IEC60092-351 IEC60092-375 IEC60092-359
• IEC60332-1 IEC60332-3Cat.A IEC 60331

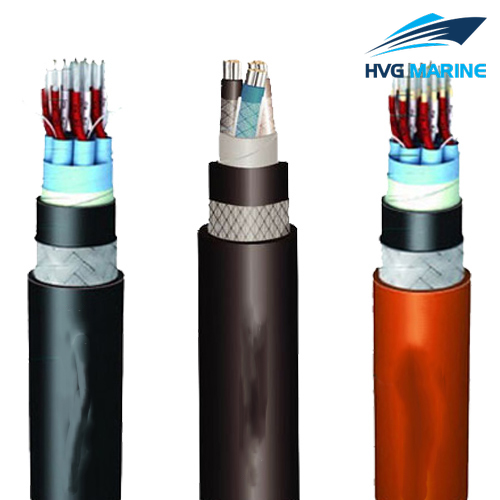

Construction:

• 1. Conductor: tinned copper
• 2. Insulation: XLPE/EPR
• 3. Tape
• 4. Individual screen: tinned copper wire braided
• 5. Tape
• 6. Inner sheath: PO (SHF1, SHF2)
• 7. Screen/Armored: tinned copper wire braid
• 8. Outer sheath: PO (SHF1, SHF2)

Flammability Features:

• DA: Single cable flame retardant
• SA: Bunched cable flame retardant
• SC: Bunched cable flame retardant, halogen-free, low-smoke, low-toxicity.

Specifications:

• Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
• Nominal Cross-section Areas: 0.75 mm²,1 mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm²,
• 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm².

Marine Cable Application: The cable is intended for communication, computer and information proceeding unit of shipboard and naval ship, and it is also available to metallurgical industry chemical works, power planted and mines etc.

Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
