MARINE CABLE 0048
    • MARINE CABLE 0048
    HVG MARINE CABLE 0048

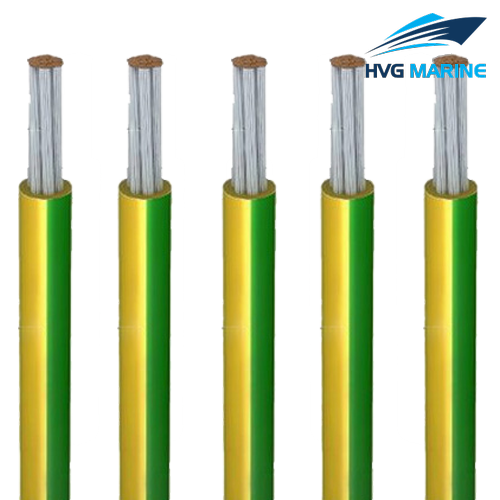

    HVG MARINE CABLE 0048: Shipboard wire

    Application: The wire is intended for connection between electrical and switch board or switch of ships.

    Standards Applied

    IEC60092-350
    IEC60092-351
    IEC60092-352
    IEC60092-353
    IEC60228
    IEC60332-1
    IEC 67154
    IEC61034

    Construction:

    • Conductor:Stranded tinned Copper wire Class2 / Class5
    • Insulation:PVC/PO(SHF2)

    Service Condition:

    Rated Voltage:0.6/1KV
    CBV/DA CBVR/DA 70℃
    CBYJ/DC CBYJR/DC 90℃

    Technical specification:

    • Specifications:
    Size CBVR CBPJR
    Diameter Reference Weight

    kg/km

    		 Diameter Reference Weight
    Min. Max. Min. Max.
    1×1 2.8 3.6 18 2.6 3.4 16
    1X1.5 3.0 4.0 22 2.8 3.8 20
    1X2.5 3.4 4.4 35 3.2 4.2 30
    1X4 4.4 5.4 60 3.8 4.8 50
    1X6 5.4 6.6 80 4.8 6.0 70
    1X10 6.6 7.8 120 6.0 7.2 110
    1X16 7.6 8.8 180 7.0 8.2 170
    1X25 9.8 11.5 280 9.2 10.5 270
    1X35 11.2 13.0 380 10.6 12.5 360
    1X50 13.0 15.0 530 12.2 14.0 510
    1X70 14.8 17.0 720 14.2 16.0 710
    1X95 17.6 20.0 980 16.6 18.5 950
    1X120 19.2 21.5 1220 18.4 21.0 1190
