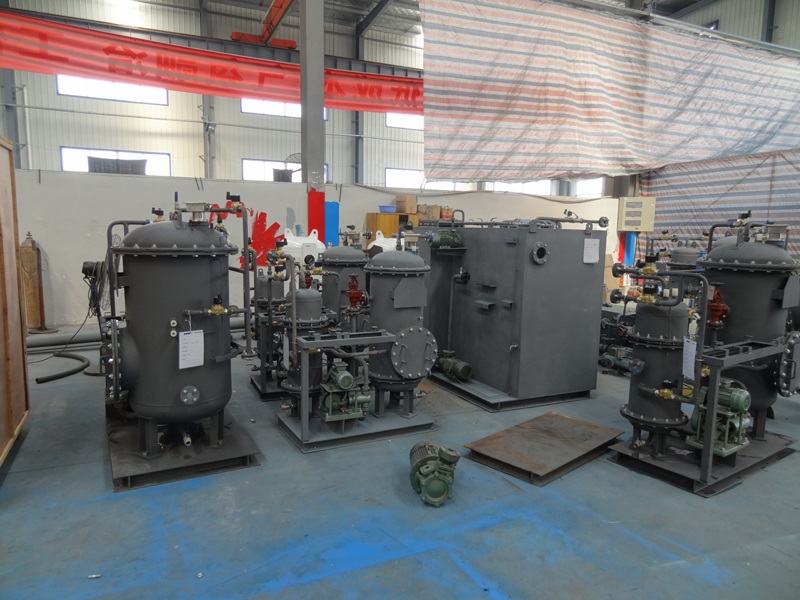

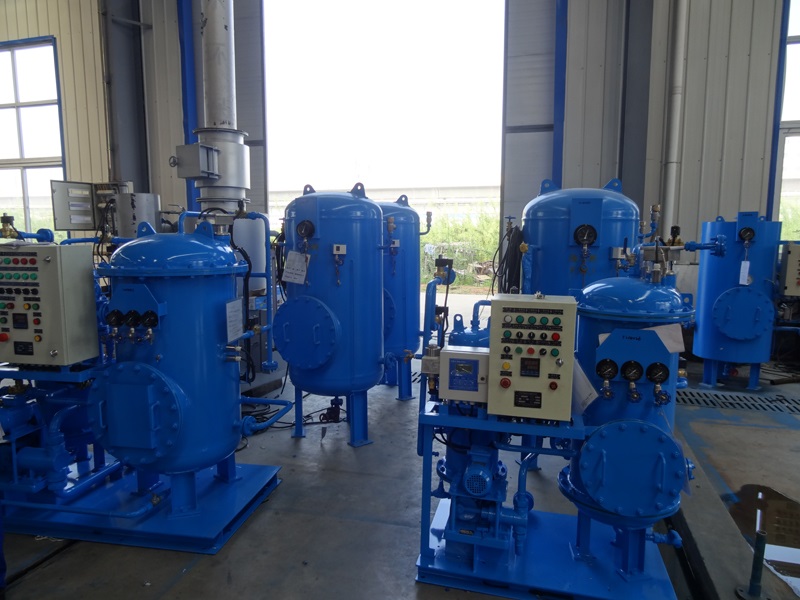

    HVG MARINE AUXILIARY MACHINERT 0142

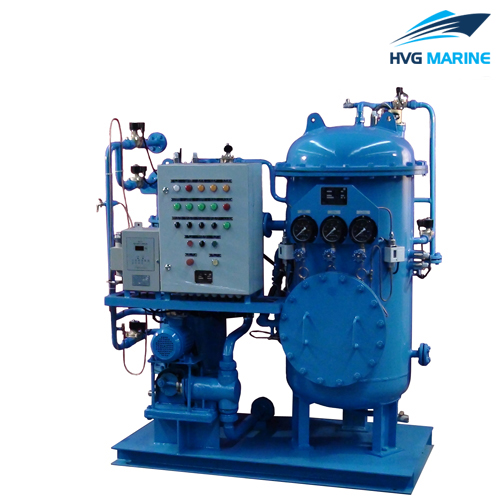

    HVG MARINE AUXILIARY MACHINERT 0142: 15ppm Oil Water Separator Factory

    • The certificate CCS, BV, EC, GL, LR, NK, ABS, and USCG, etc. is provable.
    • In our factory, there are 8 types of Series 15ppm Bilge Separator (15ppm Bilge Separator), the capacity from 0.1m3/h to 5.00 m3/h.
    • This separator can also be used in industrial and petroleum, besides in ship vessels.

    Technical specification:

    • Technical specification
    Mod. YSZ-0.1 YSZ-0.25 YSZ-0.5 YSZ-1.0 YSZ-2.0 YSZ-3.0 YSZ-4.0 YSZ-5.0
    Rated Capacity
    ( m3/h)    		 0.1 0.25 0.5 1.0 2.0 3.0 4.0 5.0
    Discharge Standard ≤15ppm, satisfying（IMO）MEPC.107（49）
    Working pressure ≤0.3MPa
    Motor power(kw) 0.12 0.18 0.25 0.37 0.75 1.1 1.5 1.5
    Electric heating – 1 2 2~3 3
    Power supply 3Ph/380V/50Hz; 3Ph/440V/60Hz (optional)
