HVG MARINE AUXILIARY MACHINERT 0135

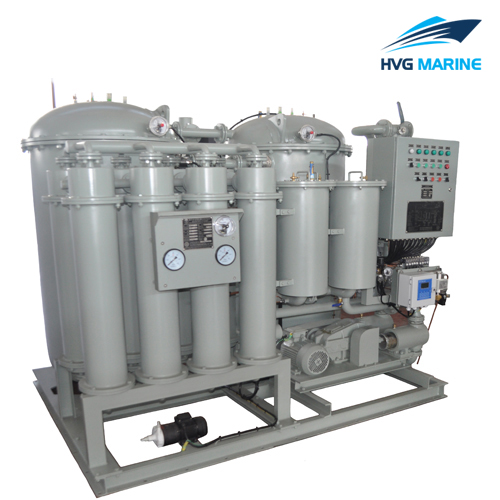

HVG MARINE AUXILIARY MACHINERT 0135: 5.00m3/h Oily Water Separating Installation

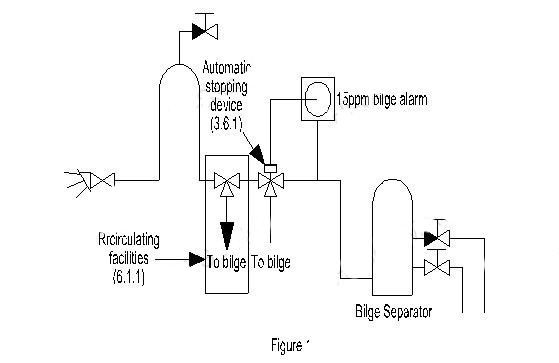

This device can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator. It contains type approved 15ppm bilge water separator ,15ppm bilge alarm and Automatic shut down Device .

The device adopts the combination of steam (electrical) heating. The1st stage cone plate gravity and coalesce separation; 2nd stage fiber filter and 3rd stage membrane permeation in order to make the treated bilge water to meet the requirements of discharge standard of the resolution of IMOMEPC.107 (49).

Technical specification:

Main Technical Parameters

Model:	YWC-5.00
Rated capacity (m3/h)	5.00
Oil content of the discharged water	≯15ppm
Power of the electric heater（kw）	12
Electrical System	AC 380V/50Hz/3φ, AC 415V/50Hz/3φ, AC 440/60Hz/3φ, AC 480V/60HZ/3φ
Power of the electric motor	2.2kw
Suction head	≯6m-H2O
Pressure of the discharged water	5-10m-H2O
Outline Dimension（LWH）(mm)	259020001900
Base	10#
Dry Weight(kg)	2500
Wet Weight(kg)	4600
