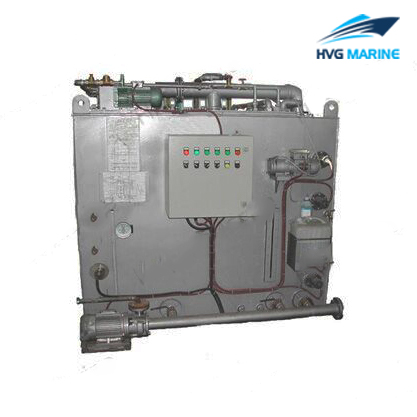

HVG MARINE AUXILIARY MACHINERT 0104: 10 Persons Wastewater Treatment Device

The regulation specifies the requirements of constitution, main function, design, manufacture, test and delivery for SWCB-10 type Sewage Treatment Plant (hereinafter to be referred as SWCB-10 type Device).

Main technical characteristic

1. Model: SWCB-10 Type
2. Quantity: 1 set/vessel
3. Capacity: Rated capacity: 10persons
4. Max capacity: 12persons
5. Emission index: BOD5≯50mg/l; SS≯50mg/l; Coliform group≯250/100ml; PH =6~9
6. Voltage: 400V/ 50Hz /3Φ
7. Power: 1.5KW
2.8 Outline dimension: L×W×H=1300×1170×1380mm
2.9 Dry weight/wet wight: 1050/2210 kg

Technical specification:

Complete machine is provided with SWCB-10 type device one set, the main components include:
Spare parts one set of standard spare part is provided as follows:

No.	Name	Model	Amount	Remarks
1	The device base	321DF-10-01	1set	Material: Q235-B
2	Main body	321DF-10-02	1set	Material: Q235-B
3	Cutting pump	0.5CWF-8	1set	Marine electric machine
4	Electric control box	321DF-1-00YL	1set	The main components select Schneider product
5	Air pump	CYBW-10	1set	Marine electric machine
6	Dosing pump		1set
7	Piping accessory of device		1set
