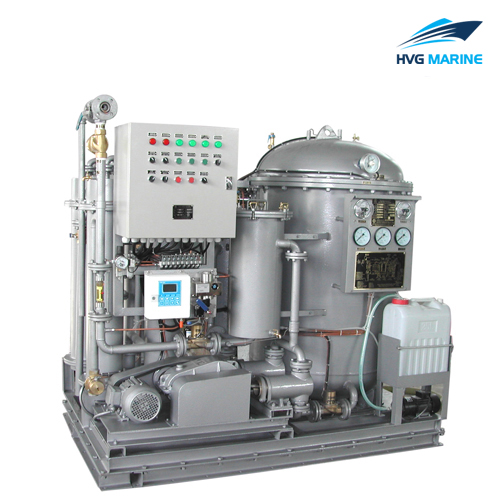

    HVG MARINE AUXILIARY MACHINERT 0086: Oil Water Separating Treater

    This Oil Water Separating Treater, which is suit for 50KDWT to 100KDWT vessel, the rate capacity is 2.5m3/hr.

    Explosion proof type is also available, used for oil platform.

    Treater Principle: The plant adopts the combination of 1ststage, cone plate gravity and coalesce separation; 2ndstage, fiber filter and 3rdstage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107.

    Technical specification:

    • Technical Parameters:
    Model YWC-2.50
    Technical Specifications 2.5
    Rated capacity(m3/h) 2.5
    Oil content of the discharged water ≤15ppm
    Power of the electric heater(kw) 6kw
    Electrical System 380V/50Hz/3φ, 415V/50Hz/3φ, 440V/60Hz/3φ, 480V/60HZ/3φ
    Power of the electric motor 1.5kw
    Suction head ≤6m-H2O
    Pressure of the discharged water 5-10m-H2O
    Outline Dimension(L*W*H)(mm) 1900*1120*1900
    Base 8#
    Weight (kg) Dry Weight 1500
    Wet Weight 2800
