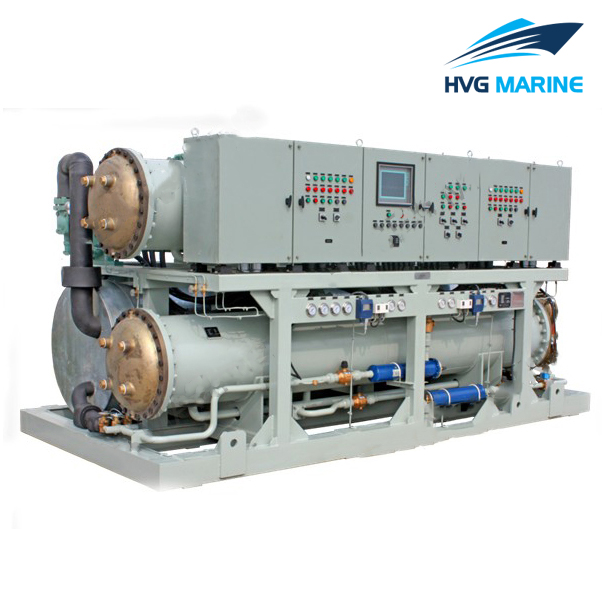

HVG MARINE AUXILIARY MACHINERT 0078: CLS marine water chiller
Marine water chiller are to provide low temperature water for cooling device and special equipments of air conditioning system.The unit have features of new-design,easy operation,stable working,safety and conveninent maintaining etc.They are widely applied for all kinds of passenger ships,cargo ships and oil platforms etc.
Features:
- Cooling capacity:11.6KW-1180KW
- The working condition of cooling capacity in the table:condensing temp 40℃，evaporating temp 2℃
Mainly composed of compressor,condenser,drier evaporator and themal expansion valve - Choosing name brand refrigeration compressor
- Main control are imported famous brand
- Condenser is HAL77-2 or Bfe10-1-1 or Fe30-1-1 high effieient heat transfering pipe,which can protect ship swinging from flow stop
- Pressure test,vacuum test and running test have been done defore delivery
- Ready for operation only when connected with water pipe and power source
- Design,manufacture and inspection comply with CCS and navy standards
- Special design and manufacture can be done upon use’s requirement
