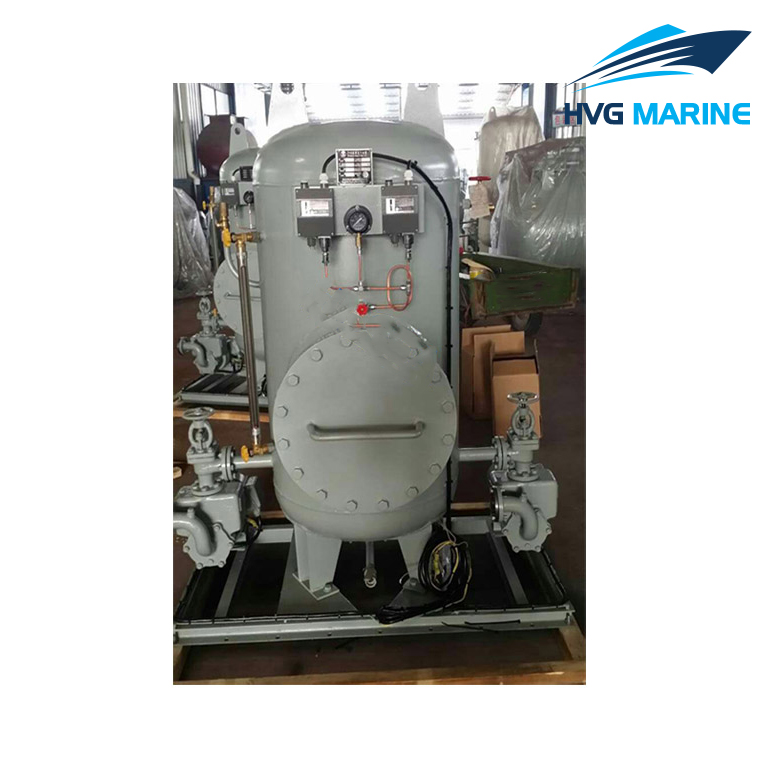

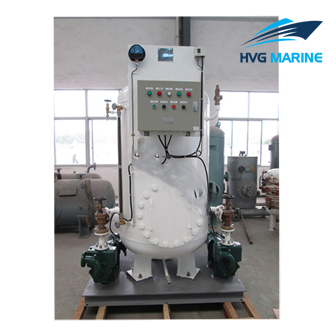

HVG MARINE AUXILIARY MACHINERT 0046: Hydrophore
1.Technical Requirements:
1). Flange Standard：CB/T46-1999 PN1.0;
2). The shell cover thickness including the forming thinning;
3). The system including security settings;
4). Pipes and support same as the drawings.

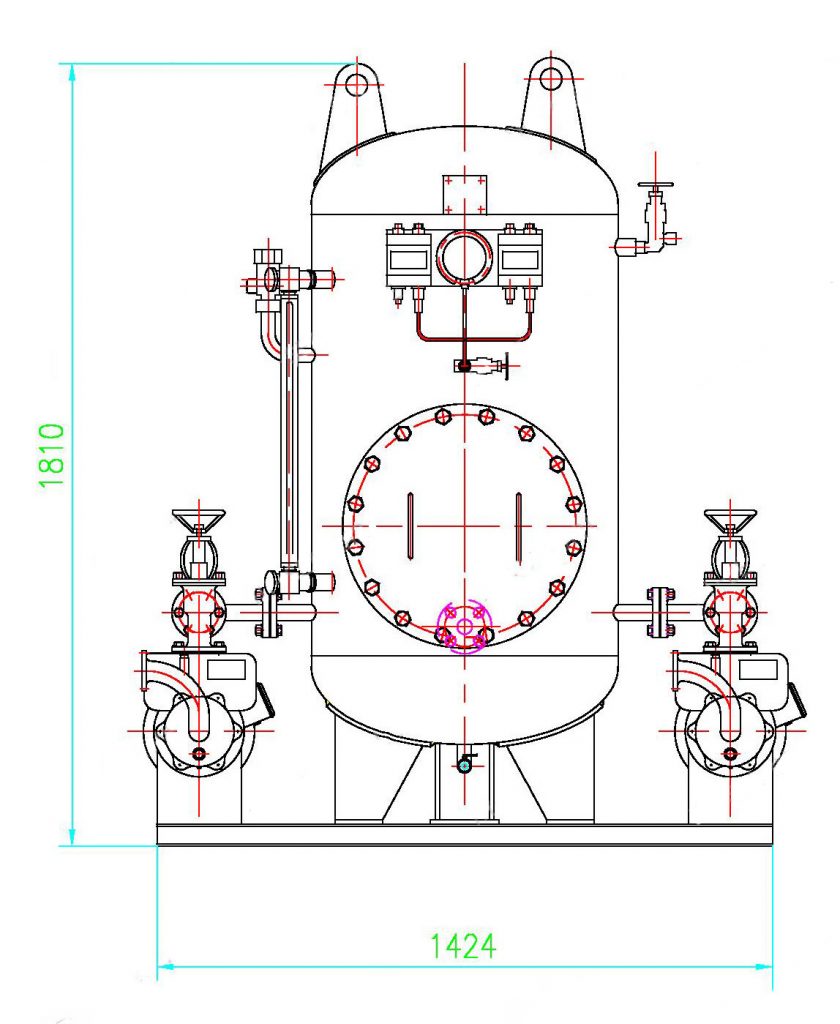

2. General Drawing:
3. Design Datas:
| Working Pressure | 0.4Mpa |
| Design Pressure | 0.44Mpa |
| Working Temp. | 0~45℃ |
| Design Temp. | 50℃ |
| Main Materials | CCS-B/SS304/SS316 |
| corrosion allowance | 0.75mm |
| welded joint coefficient | 0.6 |
| Capacity | 0.5m³ |
| The relief valve pressure jump | 0.42MPa |
| Wet Weight | 920 Kgs |
| Dry Weight | 420 Kgs |
4. Pumps Mian Parameters:
| Capacity | 3 m³/hr |
| Head | 40 meters |
| Speed | 2900 RPM |
| Power | 2.2 Kw |
