HVG MARINE AUXILIARY MACHINERT 0024

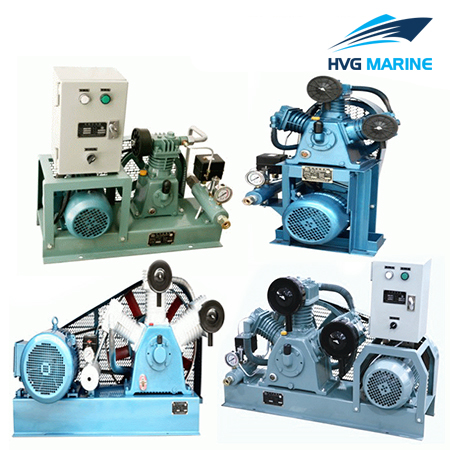

HVG MARINE AUXILIARY MACHINERT 0024: Marine Low Pressure Air-cooled Series Air Compressor with Automatic Control Unit

The type of Marine Low Pressure Air-cooled Series Air Compressor with Automatic Control Unit is Single-row,V,W and the secondary compression piston.Its displacement capacity is 3.5~60 m3 / h.The rated pressure is 1.0 Mpa.It is suitable for providing air source for the ship whistle, oil and gas stove and auxiliary equipment. The product has a manual or automatic stop, start and unloading relief function.Low energy consumption,low noise and long service life are its features.Meanwhile,it is easy to maintenance.

HVG has high-tech manufacture and considerate service,which will help decrease customers’ operation and maintenance costs to reach the goal of high efficiency, reliability,energy-saving and environmental protection. Welcome to contact us directly if you are interested in our products.

Features:

Easy to maintenance
Small size,light weight,simple structure
Low energy consumption,low noise,long service life
The displacement capacity is 3.5 ~ 60 m3 / h;The rated pressure is 1.0 MPa
The product has a manual or automatic stop, start and unloading relief function
It is suitable for providing air source for the ship whistle,oil and gas stove and auxiliary equipment

Technical specification:

Main Technical Parameter:

Model	Displacement Capacity（m3/h）	Specified Pressure（MPa）	Rotating Speed（r/min）	Motor Power		Dimension（L×W×H）mm	Weight（kg）
Model	Displacement Capacity（m3/h）	Specified Pressure（MPa）	Rotating Speed（r/min）	kW	HP	Dimension（L×W×H）mm	Weight（kg）
CZF—3.5/1	3.5	1.0	810	0.75	1	650×390×580	58
CVF—6/1	6		930	1.1	1.5	800×390×630	75
CWF—10/1(Vertical type)	10		750	1.5	2	500×400×740	85
CWF—10/1	10		750	1.5	2	900×400×650	93
CWF—15/1	15		1000	2.2	3	900×400×650	100
CWF—20/1	20		720	3	4	900×410×665	138
CWF—40/1	40		780	5.5	7.5	1220×560×810	260
CWF—60/1	60		720	11	15	1340×660×960	360
