    HVG MARINE ANODE 0029

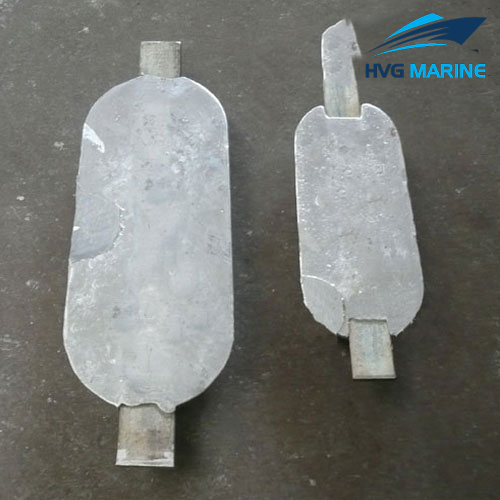

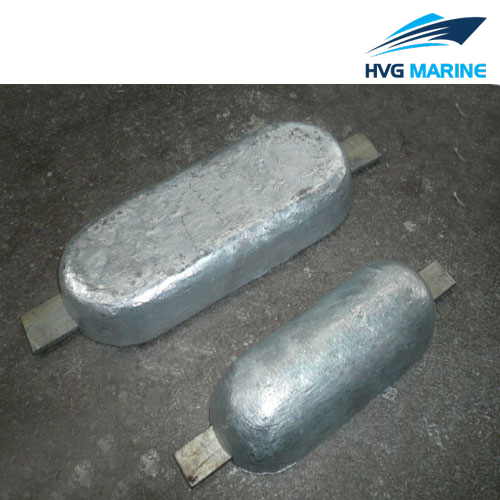

    HVG MARINE ANODE 0029: Zinc Anode for Storage Tank

    Aluminum-Zinc-Cadmium series (ZAC Series) is a sacrificial anode casted by high purity zinc and aluminum, cadmium alloy.

    This product is approved by CCS and its quality standards is in accordance with the GB/T4950-2002 standard. The zinc anode chemical composition conforms to the standard of US MIL-A-18001H and ASTM-B418 (Type 1). The anode used for pipelines is at the same time in line with SY/T0019-97 ‘Design Code for Sacrificial Anode Cathodic Protection of Buried Steel Pipeline’.

    Main Performance

    Anode has small autolysis, high current efficiency and excellent self-regulating property when current occurs. Its protection period is long up to 20 to 30 years, generally no ‘over protection’ phenomenon occurring.

    Application

    Zinc alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of the ships, water ballast tanks, mechanical equipment, marine engineering and port facilities, drilling platform, wharf, seawater condenser, pump in sea water medium as well as the pipes and cables in low resistivity soil.

    Technical specification:

    • Specifications of Zinc Anode for Storage Tank
    • Chemical Composition (%)
    • Electrochemical Properties

    Type

    Specification

    (mm)

    Iron Feet Size

    (mm)

    Net Weight

    (kg)

    Gross Weight

    (kg)
    A×(B1+B2)×C D F G
    ZC-1 750×(115+135)×130 900 16 8~10 82.0 85.0
    ZC-2 500×(115+135)×130 650 16 8~10 55.0 56.0
    ZC-3 500×(105+135)×100 650 16 8~10 39.0 40.0
    ZC-4 300×(105+135)×100 400 12 8~10 24.6 25.0
    Chemical Element Al Cd Impurity Element Zn
    Fe Cu Pb Si
    Content 0.3~0.6 0.05~0.12 ≤0.005 ≤0.005 ≤0.006 ≤0.125 margin



    Electrochemical Properties Open Circuit Potential

    V

    		 Working Potential

    V

    		 Actual Capacitance

    (Ah/kg)

    		 Consumption Rate

    (Ah/kg)

    		 Current Effiency

    %

    		 Dissolution Performance
    In Sea Water

    (1mA/cm2)

    		 -1.09~-1.05 -1.05~-1.08 ≥780 ≤11.23 ≥95 Surface dissolution is even, while the corrosion products are easy to fall off
    In Soil

    (0.03mA/cm2)

    		 ≤-1.05 ≤-1.03 ≥530 ≤17.25 ≥65
