    HVG MARINE ANODE 0024

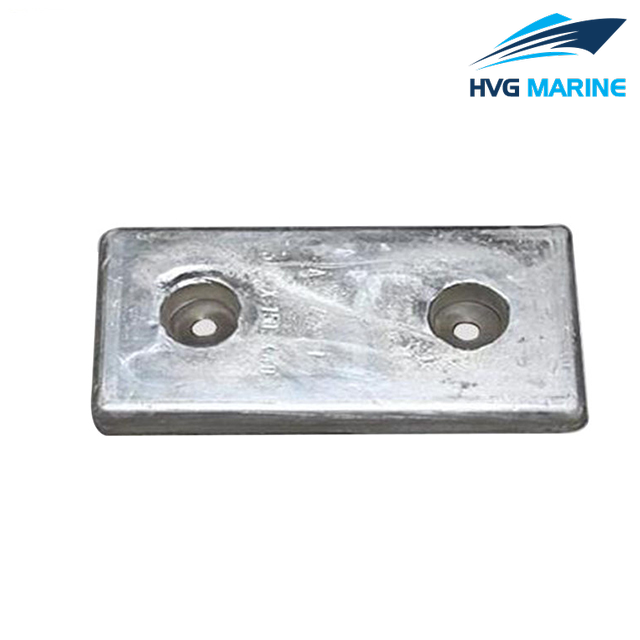

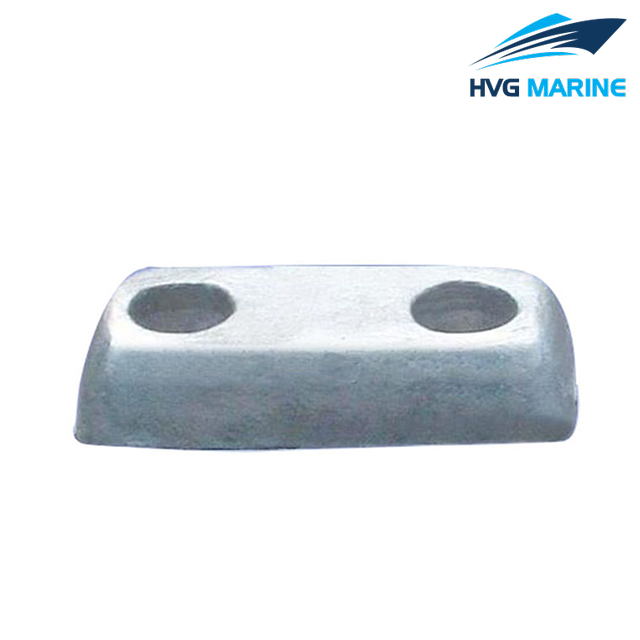

    HVG MARINE ANODE 0024: Bolt Connection Type Zinc Anode for Ship Hull

    Aluminum-Zinc-Cadmium series (ZAC Series) is a sacrificial anode casted by high purity zinc and aluminum, cadmium alloy. This product is approved by CCS and its quality standards is in accordance with the GB/T4950-2002 standard. The zinc anode chemical composition conforms to the standard of US MIL-A-18001H and ASTM-B418 (Type 1). The anode used for pipelines is at the same time in line with SY/T0019-97 ‘Design Code for Sacrificial Anode Cathodic Protection of Buried Steel Pipeline’.

    Implementing Standard: GB/T4950-2002

    Main Performance

    • Small autolysis;
    • High current efficiency and excellent self-regulating property when current occurs;
    • Long protection period(up to 20 to 30 years), generally no ‘over protection’ phenomenon occurring.

    Anode Application: Zinc alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of the ships, water ballast tanks, mechanical equipment, marine engineering and port facilities, drilling platform, wharf, seawater condenser, pump in sea water medium as well as the pipes and cables in low resistivity soil.

    Technical specification:

    • Bolt Connection Type Zinc Anode for Ship Hull
    • Chemical Composition (%)
    • Electrochemical Properties

    Type

    Specification

    (mm)

    Iron Foot Size (mm)

    Net Weight

    (kg)

    Gross Weight

    (kg)
    A×B×C D E F G
    ZH-13 300×150×50 250 50 3~4 8~10 11.6 12.0
    ZH-14 300×150×40 250 50 3~4 8~10 8.6 9.0
    Chemical Element Al Cd Impurity Element Zn
    Fe Cu Pb Si
    Content 0.3~0.6 0.05~0.12 ≤0.005 ≤0.005 ≤0.006 ≤0.125 margin
    Electrochemical Properties Open Circuit Potential

    V

    		 Working Potential

    V

    		 Actual Capacitance

    (Ah/kg)

    		 Consumption Rate

    (Ah/kg)

    		 Current Efficiency

    %

    		 Dissolution Performance
    In Sea Water

    (1mA/cm2)

    		 -1.09~-1.05 -1.05~-1.08 ≥780 ≤11.23 ≥95 Surface dissolution is even, while the corrosion products are easy to fall off
    In Soil

    (0.03 mA/cm2)

    		 ≤-1.05 ≤-1.03 ≥530 ≤17.25 ≥65
