HVG MARINE ANODE 0018

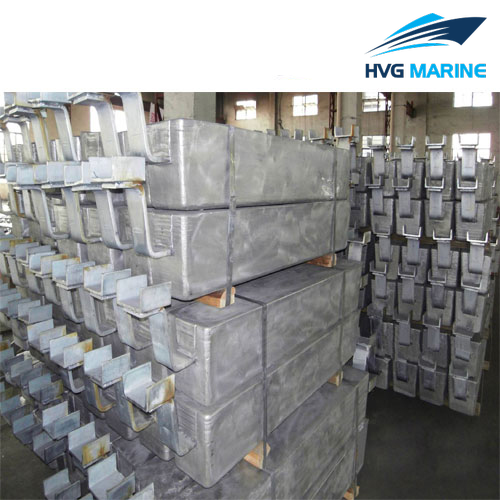

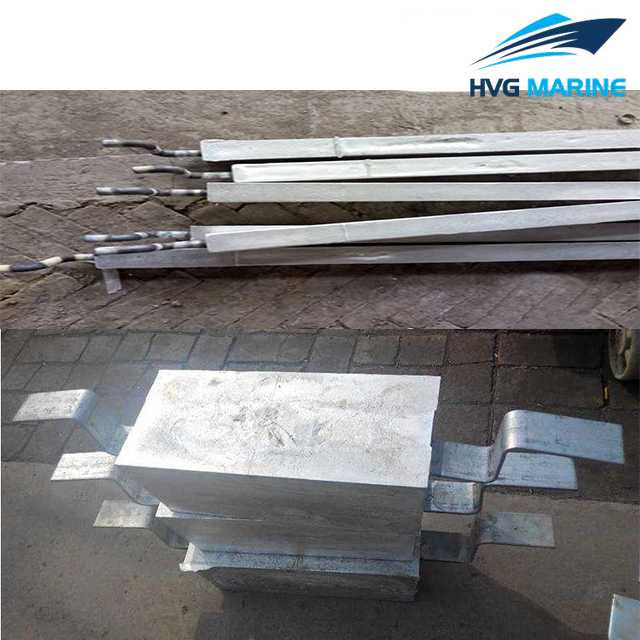

HVG MARINE ANODE 0018: Common Aluminum Anode for Seawater Cooling System

The most commonly used aluminum alloy anodes are Al-Zn-In series and Al-Zn-Hg series, applicable to the cathodic protection of ships, ports and marine facilities in seawater, sea water cooling system and reservoir deposited water site and other construction.

Aluminum zinc indium system (AZI) sacrificial anode is casted by high purity aluminum, zinc, indium and other metal alloy. Aluminum alloy anode is produced in line with the implementation of GB4948-2002 Aluminum Zinc Indium Alloy Sacrificial Anode.

The aluminum alloy can prevent the corrosion of steel structure in seawater, widely used for the anti-corrosion of the ship hull, pressurized water tank, seawater pipeline, port and terminal facilities, marine engineering, drilling platform, condensator and pipelines in soil. The performance of aluminum anode is influenced by the chemical composition of the alloy, so we offer different composition of aluminum alloys to meet our customer requirements.

Implementing Standard: U.S.Mil-A-1800K/W, gb4948-2002

Main Performance: The driving voltage is low; light weight; high current efficiency.

Application: Aluminum alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of ships, mechanical equipment, offshore engineering and port facilities in seawater as well as the protection of pipes, cables and other facilities in mud.

Note: our company can also design and produce all kinds of special specifications and properties of aluminum alloy sacrificial anode according to the different needs of customers.

Technical specification:

Chemical Composition
Electrochemical Properties
Common Aluminum Anode for Seawater Cooling System

Alloy Type	Zn	In	Cd	Sn	Mg	Si	Ti	Impurity, ≤			Al
Alloy Type	Zn	In	Cd	Sn	Mg	Si	Ti	Si	Fe	Cu	Al
Al-Zn-In-Sd	2.5-4.5	0.018-0.050	0.005-0.020	–	–	–	–	0.10	0.15	0.01	margin
Al-Zn-In-Sn	2.2-5.2	0.020-0.045	–	0.018-0.035	–	–	–	0.10	0.15	0.01	margin
Al-Zn-In-Si	5.7-7.0	0.025-0.035	–	–	–	0.10-0.15	–	0.10	0.0-15	0.01	margin
Al-Zn-In-Sn-Mg	2.5-4.0	0.020-0.050	–	0.025-0.075	0.50-1.00	–	–	0.10	0.15	0.01	margin
Al-Zn-In-Mg-Ti	4.0-7.0	0.020-0.050	–	–	0.50-1.50	–	0.01-0.08	0.10	0.15	0.01	margin

Type/Index/Performance	Open Circuit Potential-V(SCE)	Working Potential-V(SCE)	Actual Capacitance(A.h/kg)	Current Efficiency%	Dissolution Status
Ordinary Aluminum Alloy Sacrificial Anode	1.10-1.18	1.05-1.12	≥2400	≥85	Corrosion products are easy to fall off, the surface dissolution is even
High Efficiency Aluminum Alloy Sacrificial Anode	1.10-1.18	1.05-1.15-2	≥2600	≥90
Highly Activated Aluminum Alloy Sacrificial Anode	1.45-1.50	1.40-1.45	≥2080	≥70

Type	Specification mm	Weight kg
Type	A×(B1+B2)×C	Weight kg
AE-1	1200×(200+280)×150	120.0
AE-2	800×(200+280)×150	80.0
AE-3	1000×(115+135)×130	46.0
AE-4	500×(115+135)×130	23.0
AE-5	1000×(80+100)×80	20.0
AE-6	500×(105+135)×100	16.0
AE-7	500×(80+100)×80	10.0
AE-8	400×(110+120)×50	7.0
AE-9	300×(140+160)×40	5.0
AE-10	200×(90+110)×40	3.0
AE-11	300×50 Disc Shape	11.5
AE-12	360×40 Disc Shape	9.0
AE-13	300×40 Disc Shape	7.5
AE-14	200×50 Disc Shape	4.0
AE-15	180×50 Disc Shape	3.5
AE-16	120×100 Disc Shape	2.5
