Marine Anode

Our company can supply various specifications of sacrificial anodes to meet customer’s different requirements for the cathodic protection system.

Classification and Application of Sacrificial Anodes:

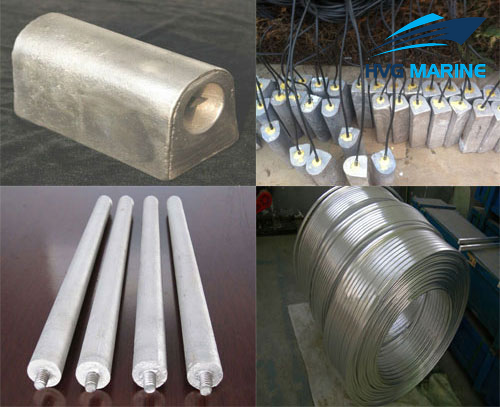

1.Magnesium Alloy Sacrificial Anode
Magnesium alloy sacrificial anode is suitable for the anti-corrosion protection of oil, gas, water supply and drainage pipelines in underground fresh water, underground cables, chemical industry, communication, harbor, ship, reservoir and other projects.

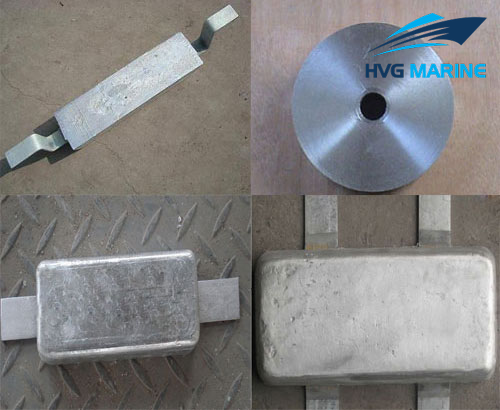

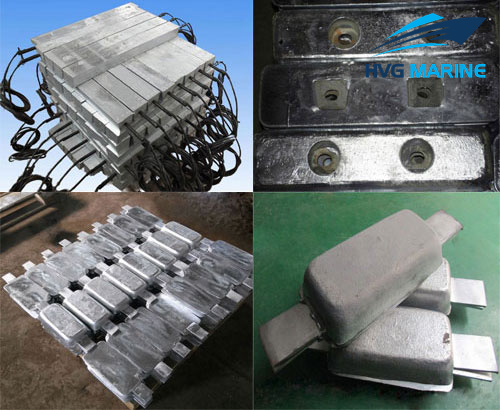

2.Aluminum Alloy Sacrificial Anode
Aluminum-Zinc-Indium alloy sacrificial anode is suitable for the metal cathodic protection of ships, mechanical equipment, ballast water tank, tank inner wall, coastal facilities, submarine pipeline, wharf steel pile, offshore platform and others in seawater medium.

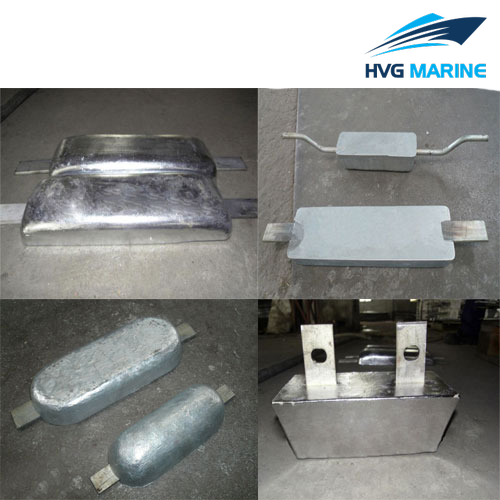

3.Zinc Alloy Sacrificial Anode
Zinc-Aluminum-Cadmium Sacrificial anodes are suitable for the cathodic protection of ships, mechanical equipment, offshore engineering and harbor facilities in fresh water or seawater medium and the pipelines and cables in low resistivity soils.

4.Impressed Current High Silicon Cast Iron Anode
High silicon cast iron anodes are widely used for cathodic protection of external electric current in offshore oil drilling platforms, underground pipelines, and the underground cable facilities.

Technical specification:

D Type Magnesium Anode Specifications
Aluminum Anode for Storage Tank
Aluminum Anode for Harbor and Marine Engineering Facilities
Aluminum Anode for Ballast Water Tank
Common Aluminum Anode for Seawater Cooling System
Aluminum Anode for Ship Hull
Welding Type Zinc Anode for Ship Hull (Single Iron Foot)
Welding Type Zinc Anode for Ship Hull (Double Iron Feet)
Bolt Connection Type Zinc Anode for Ship Hull

Type	Weight kg(LB)	Magnesium Sacrificial Anode mm(inch)
Type	Weight kg(LB)	A	B	C
9D2	4.082(9)	69.9(2 3/4)	549.3(21 5/8)	76.2(3)
14D2	6.350(14)	69.9(2 3/4)	850.9(33 1/2)	76.2(3)
20D2	9.072(20)	69.9(2 3/4)	1212.9(47 3/4)	76.2(3)
9D3	4.082(9)	88.9(3 1/2)	352.4(13 7/8)	95.3(3 3/4)
17D3	7.711(17)	88.9(3 1/2)	641.4(25 1/4)	95.3(3 3/4)
32D5	14.515(32)	139.7(5 1/2)	504.8(19 7/8)	146.1(5 3/4)
48D5	21.772(48)	139.7(5 1/2)	765.2(30 1/8)	146.1(5 3/4)
60D4	27.216(60)	114.3(4 1/2)	114.3(4 1/2)	1460.5(57 1/2)

Type	Specification/mm	Weight (kg)
Type	A×(B1+B2)×C	Weight (kg)
AC-1	750×(115+135)×130	35.0
AC-2	500×(115+135)×130	23.0
AC-3	500×(105+135)×100	16.0
AC-4	300×(105+135)×100	10.0

Type	Specification mm	Weight kg
Type	A×(B1+B2)×C	Weight kg
AI-1	2300×(220+240)×230	310.0
AI-2	1600×(200+210)×220	190.0
AI-3	1500×(170+200)×180	130.0
AI-4	900×(150+170)×160	58.0
AI-5	1500×(148+178)×170	120.0
AI-6	850×(180+220)×180	85.0
AI-7	800×(200+280)×150	60.0
AI-8	700×(160+220)×180	72.5
AI-9	1250×(115+135)×130	56.0
AI-10	1000×(115+135)×130	46.0
AI-11	750×(115+135)×130	35.0
AI-12	500×(115+135)×130	23.0

Type	Specification mm	Weight kg
Type	A×(B1+B2)×C	Weight kg
AT-1	500×(115+135)×130	23.0
AT-2	1500×(65+75)×70	21.5
AT-3	500×(110+130)×120	20.0
AT-4	1000×(58.5+78.5)×68	13.2
AT-5	800×(56+74)×65	10.0
AT-9	1150×(48+54)×51	9.0
AT-7	250×(80+100)×85	5.0
AT-8	200×(70+90)×70	3.0

ype	Specification mm	Weight kg
ype	A×(B1+B2)×C	Weight kg
AE-1	1200×(200+280)×150	120.0
AE-2	800×(200+280)×150	80.0
AE-3	1000×(115+135)×130	46.0
AE-4	500×(115+135)×130	23.0
AE-5	1000×(80+100)×80	20.0
AE-6	500×(105+135)×100	16.0
AE-7	500×(80+100)×80	10.0
AE-8	400×(110+120)×50	7.0
AE-9	300×(140+160)×40	5.0
AE-10	200×(90+110)×40	3.0
AE-11	300×50 Disc Shape	11.5
AE-12	360×40 Disc Shape	9.0
AE-13	300×40 Disc Shape	7.5
AE-14	200×50 Disc Shape	4.0
AE-15	180×50 Disc Shape	3.5
AE-16	120×100 Disc Shape	2.5

Type	Specification mm	Weight kg
Type	A×B×C	Weight kg
AH-1	800×140×60	17.0
AH-2	800×140×50	15.0
AH-3	800×140×40	12.0
AH-4	600×120×50	10.0
AH-5	400×120×50	6.5
AH-6	500×100×40	5.5
AH-7	400×100×40	4.5
AH-8	300×100×40	3.5
AH-9	250×100×40	2.5
AH-10	180×70×35	1.2
AH-11	300×150×50 Double Iron Feet	5.8
AH-12	300×150×40 Double Iron Feet	4.6
AH-13	300×150×50 Bolt Type	5.8
AH-14	300×150×40 Bolt Type	4.8

Type	Specification (mm)	Iron Foot Size (mm)				Net Weight (kg)	Gross Weight (kg)
Type	A×B×C	D	E	F	G	Net Weight (kg)	Gross Weight (kg)
ZH-1	800×140×60	900	45	5~6	8~10	45.4	47.0
ZH-2	800×140×50	900	45	5~6	6~8	37.4	39.0
ZH-3	800×140×40	900	45	5~6	5~6	29.5	31.0
ZH-4	600×120×50	700	40	5~6	6~8	24.0	25.0
ZH-5	400×120×50	470	35	4~5	6~8	15.3	16.0
ZH-6	500×100×40	580	40	4~5	5~6	12.7	13.6
ZH-7	400×100×40	460	30	4~5	5~6	10.6	11.0
ZH-8	300×100×40	360	30	3~4	5~6	7.2	7.5
ZH-9	250×100×40	310	30	3~4	5~6	6.2	6.5
ZH-10	180×70×40	230	25	3~4	5~6	3.3	3.5

Type	Specification (mm)	Iron Foot Size (mm)				Net Weight (kg)	Gross Weight (kg)
Type	A×B×C	D	E	F	G	Net Weight (kg)	Gross Weight (kg)
ZH-11	300×150×50	360	30	4~5	5~6	13.7	14.5
ZH-12	300×150×40	360	30	4~5	5~6	10.7	11.5

Type	Specification (mm)	Iron Foot Size (mm)				Net Weight (kg)	Gross Weight (kg)
Type	A×B×C	D	E	F	G	Net Weight (kg)	Gross Weight (kg)
ZH-13	300×150×50	250	50	3~4	8~10	11.6	12.0
ZH-14	300×150×40	250	50	3~4	8~10	8.6	9.0
