HVG KITCHEN EQUIPMENT 0043

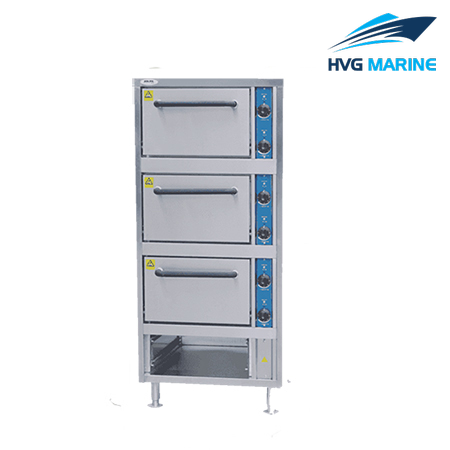

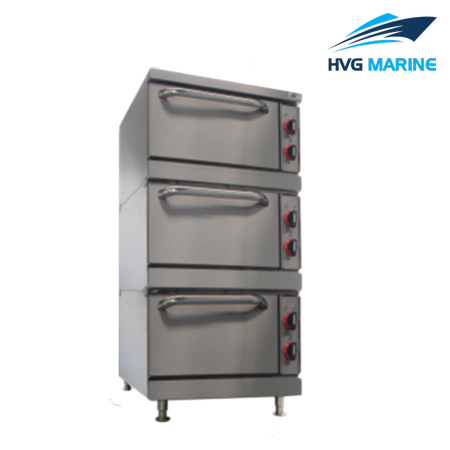

HVG KITCHEN EQUIPMENT 0043: Marine Electric Deck Oven

Marine Electric Deck Oven is a kind of marine kitchen device. The oven is deck type which has the advantages of large capacity, low consumption, and convenience. It employs the thermostat which is imported form Germany. The cooking temperature can be adjusted from 60℃ to 320℃. Each compartment of the oven is installed with a pair of heating elements which are controlled separately. The bottom compartment is designed as an open cabinet for storing baking plates. According to your requirement, we can replace the bottom compartment with a fermentation room. There are four models that you can choose from. If you are interested in our products, welcome to contact us.

Features

Overall structure of stainless steel imported temperature controller
Two sets of upper and lower heater each of them can be independently control
Oven temperature can be set freely between 60℃and 320℃, and automatically keep constant temperature
Lower oven can be replaced for fermentation box according to requirements. Combined with baking tray bracket at the bottom. Two type of door can be chosen: designed with visible glass window(C), completely stainless steel type（B）

Technical specification:

Specifications

Series HSQ

Model	Voltage	Rating	Size	Net Weight
HSQC111/B111	380-440V/3P/50-60Hz	5.2kw	800×790×1300mm	190kg
HSQC201/B201	380-440V/3P/50-60Hz	8.4kw	800×790×1350mm	200kg
HSQC211/B211	380-440V/3P/50-60Hz	9.4kw	800×790×1800mm	250kg
HSQC301/B301	380-440V/3P/50-60Hz	12.6kw	800×790×1800mm	270kg
HSQC1200	380-440V/3P/50-60Hz	24kw	1710×1070×1650mm	540kg

Series HSI

Model	Voltage	Rating (each deck)	Total Rating	Deck Dimension(mm)	Chamber Dimension(mm)	Overall Dimension	Net Weight(kg)
HSIPT22	220V/3PH/50/60Hz	4.8kw	14.4kw	800×905×500	550×660×290	800×905×1700	200
HSIPT40	400/415V/3PH/50Hz
HSIPT44	440V/3PH/60Hz
HSIPT48	480V/3PH/60Hz
