HVG KITCHEN EQUIPMENT 0035

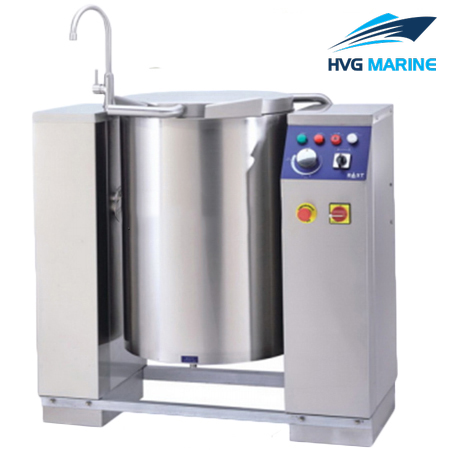

HVG KITCHEN EQUIPMENT 0035: Marine Tilting Boiling Pan

Marine Tilting Boiling Pan is a sort of boiling pan which is able to tilt its body. It is whole stainless steel construction. The pan tilt rod is driven by turbine vortex. What’s more, it equips a pressure gauge and safety valve which enable the boiling pan to be safer for all users. It introduces adjustable feet which make installation easy. We provide the marine tilting boiling pan with different capacity. We also supply other marine cooking equipment. If you want to know more details, welcome to contact us.

Features

1. Complete stainless steel construction
2. There are two types of tilting devices including rotated manual device and electric device.
3. The pan body is designed with three-tier insulation structure. The heating is indirect ,efficient and even.
4. Equipped with automatic water lacking breaker
5. External pressure gauge and pressure releasing valve are applied for over pressure protection
6. Electric mode can be chosen for the turnover mechanism
7. Equipped with the adjustable fixed pedestal
8. Limit switch automatically stops the heating when the pan is tilted.
9. Anti-storm pan lid is provided

Technical specification:

Specifications

Model	Voltage	Capacity	Rating	Size	Weight
HSA-40Q	380~415V-3P-50Hz	40L	9Kw	790×620×900mm	100Kg
	440~480V-3P-60Hz
HSB-40/40E	380~415V-3P-50Hz	40L	9Kw	1020×570×1000mm	135kg
	440~480V-3P-60Hz
HSA60Q	380~415V-3P-50Hz	60L	9Kw	840×680×950mm	120kg
	440~480V-3P-60Hz
HSB-60/60E	380~415V-3P-50Hz	60L	9Kw	1020×570×1000mm	144kg
	440~480V-3P-60Hz
HSB-80/80E	380~415V-3P-50Hz	80L	12Kw	1120×670×1000mm	152kg
	440~480V-3P-60Hz
HSB-100/100E	380~415V-3P-50Hz	100L	12Kw	1120×670×1000mm	166kg
	440~480V-3P-60Hz
HSA-150Q	380~415V-3P-50Hz	150L	18Kw	1050×880×1000mm	230kg
	440~480V-3P-60Hz
HSA-250Q	380~415V-3P-50Hz	250L	27Kw	1300×980×1100mm	350kg
	440~480V-3P-60Hz
