HVG KITCHEN EQUIPMENT 0027

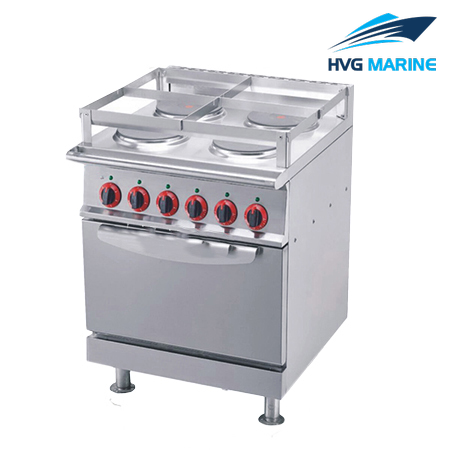

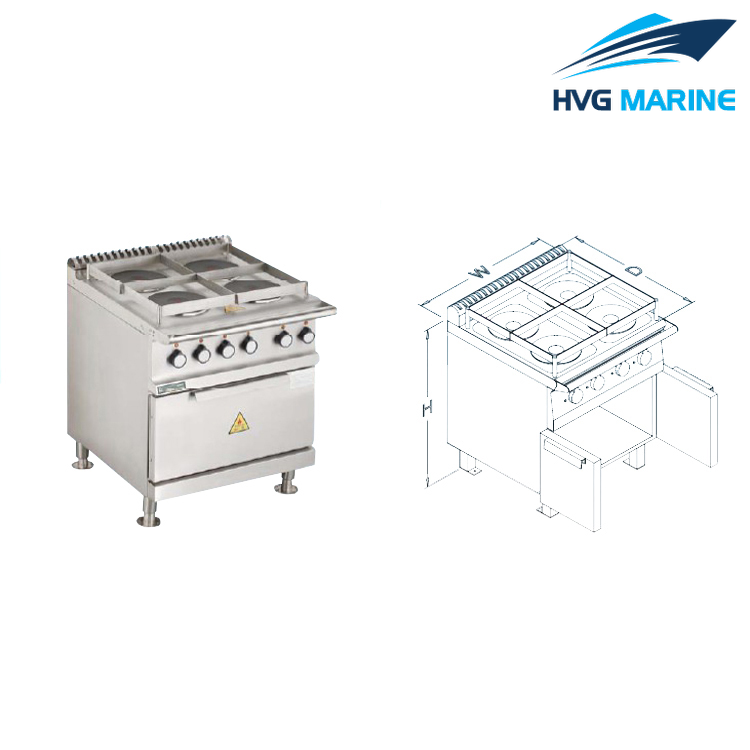

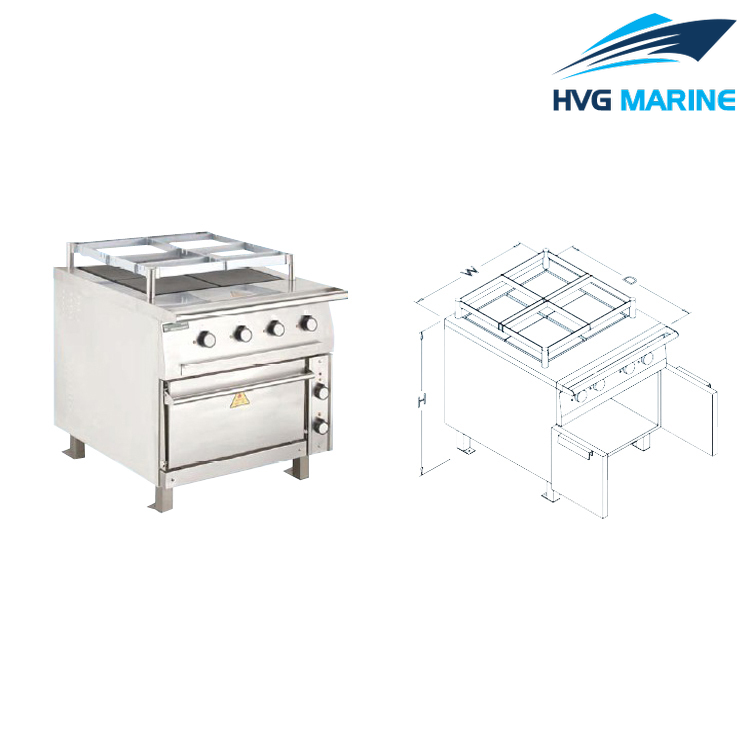

HVG KITCHEN EQUIPMENT 0027: Marine Cooking Range with Oven (Four Hot Plates)

Marine Cooking Range with Oven (Four Hot Plates) is suitable for small, medium and large vessels. The marine cooking range with oven (four hot plates) is whole stainless steel construction. Its cooktop is durable, anti-corrosion and resistant to high temperature. It equips a six-speed thermal control switch. It has overflow protection. The hot plates of the range is imported form Germany. It equips with handrails and racks. The bottom deck of the range is able to be designed as baking oven or cabinet. In addition to the marine cooking range with oven (four hot plates), we supply marine cooking range with oven (six hot plates). If you are interested in our products, welcome to contact us.

Features

Complete stainless steel construction
Imported hot plates and electric components
A six-speed thermal control switch
With handrails and racks
Round hot plates of square hot plates
Suitable for various kinds of vessels

Technical specification:

Specifications

Model	Voltage	Rating	Size(W×D×H)	Weight
HSA3	380-415V-3P-50Hz 440-480V-3P-60Hz	5.2Kw	700×500×850mm	35kg
HSA5	380-415V-3P-50Hz 440-480V-3P-60Hz	10.4Kw	700×700×850mm	65kg
HSA5/R	380-415V-3P-50Hz 440-480V-3P-60Hz	15.2Kw	700×700×850mm	105kg
HSA7	380-415V-3P-50Hz 440-480V-3P-60Hz	15.6Kw	1050×700×850mm	80kg
HSA7/R	380-415V-3P-50Hz 440-480V-3P-60Hz	20.4Kw	1050×700×850mm	120kg
HSB4B	380-415V-3P-50Hz 440-480V-3P-60Hz	10.4Kw	700×800×850mm	65kg
HSB4B/O	380-415V-3P-50Hz 440-480V-3P-60Hz	15.2Kw	700×800×850mm	105kg
HSB6B	380-415V-3P-50Hz 440-480V-3P-60Hz	15.6Kw	1050×800×850mm	80kg
HSB6B/O	380-415V-3P-50Hz 440-480V-3P-60Hz	20.4Kw	1050×800×850mm	120kg
HSD4FB	380-415V-3P-50Hz 440-480V-3P-60Hz	10.4Kw	700×700×850mm	90kg
HSD4FB/R	380-415V-3P-50Hz 440-480V-3P-60Hz	15.2Kw	700×700×850mm	115kg
HSD6FB	380-415V-3P-50Hz 440-480V-3P-60Hz	15.6Kw	1060×700×860mm	125kg
HSD6FB/R	380-415V-3P-50Hz 440-480V-3P-60Hz	20.4Kw	1050×700×850mm	150kg
