HVG KITCHEN EQUIPMENT 0018

HVG KITCHEN EQUIPMENT 0018: Marine Freezer

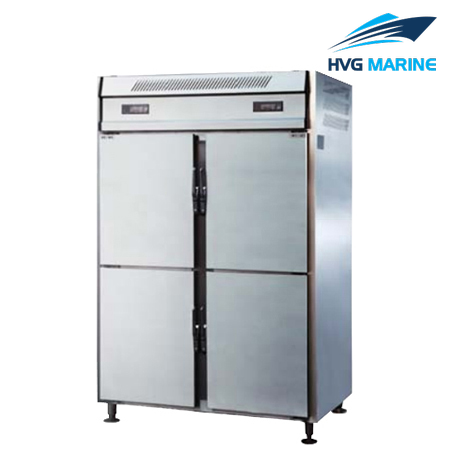

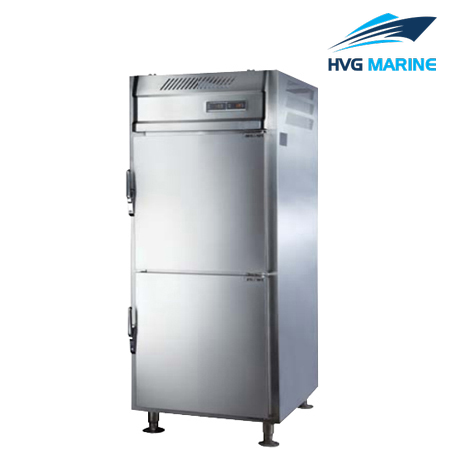

The interior and exterior of the marine freezer is made of SUS304. It has a top-arranged compressor and it uses the refrigerant R134a. It equips a digital temperature display which shows internal temperature clearly. It adopts polyurethane foaming which is good for thermal insulation. It employs magnetic door seal and heavy duty mechanical door lockers. The electrical protection grade is IP44. There are two types of marine freezer, one is HS-IP1 which is ideal for small ships, another is HS-IP2 which is suitable for medium and large vessels. We provide sufficient and reasonably priced products. If you are interested in our products, welcome to contact us.

Features

SUS304 interior and exterior
Top-arranged compressor
Electronic temperature control and digital temperature display
Environment-friendly refrigerant
Polyurethane foaming, CFC and HCFC free.
Protection grade: IP44
Low power consumption
A long service life

Technical specification:

Specifications of HS-IP1
Specifications of HS-IP2

Model	HSIP1-1	HSIP1-2	HSIP1-3	HSIP1-4	HSIP1-5	HSIP1-6
Temperature (℃)	-18~-12	0~10	Dual	-18~-12	0~10	Dual
Capacity (L)	500	500	250+250	1000	1000	500+500
Voltage	220V-1PH-50/60Hz
Power (kw)	0.5	0.45	0.5	1	0.46	0.9
Dimension (mm)	625×800×1840			1250×800×1840
Note	The type is compact structure which is suitable for small ships

Model	HSIP2-1	HSIP2-2	HSIP2-3	HSIP2-4	HSIP2-5
Temperature (℃)	-18~-12	0~10	-18~-12	0~10	Dual
Capacity (L)	600	600	1200	1200	600+600
Voltage	220V-1PH-50/60Hz
Power (kw)	0.45	0.5	1	0.46	0.9
Dimension (mm)	700×800×2000		1450×800×2000
Note	The type is designed to accommodate 2/1 GN pans
