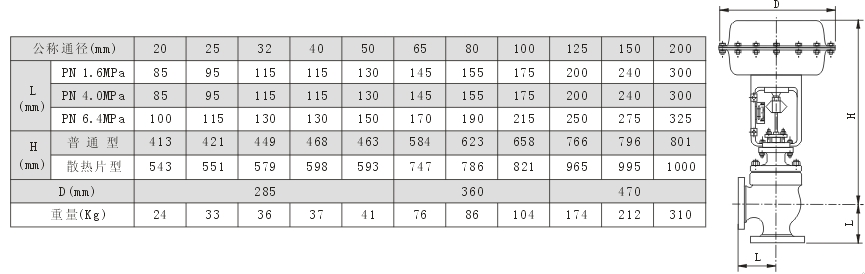

HVG INDUSTRIAL VALVES 0059: ZJHS Pneumatic High Pressure Angle Control Valve
Advantage: stable motion, simple structure, excellent anti-blocking
Application: regulating medium with high viscosity, or suspended matter and granule, using at the circumstance of right angle
| Nominal Dimension (mm) | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |||||
| Seat Diameter (mm) | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Flow coefficient (Kv) | 1.6 | 2.5 | 4.0 | 6.3 | 20 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 |
| Rangeability | 30:1 | |||||||||||||||
| Nominal Pressure | 1.6,4.0,6.4MPa;Special order:10,22,32MPa | |||||||||||||||
| Core Type | Single seat plunger valve core | |||||||||||||||
| Flow Characteristics | Linear, logarithmic | |||||||||||||||
| Effect Model | Pneumatic open or close | |||||||||||||||
| Working Temperature | Ordinary model:-40~230°C, Radiation model:230~450°C, Special ordering:450~600°C | |||||||||||||||
| Flange Standard | ANSI, JIS, DIN | |||||||||||||||
| Actuator | ZHA/B multiple spring diaphragm actuator, ZSL linear motivation pneumatic plunger actuator | |||||||||||||||
| Available parts | Positioner, solenoid valve, air filt pressure reducing valve, locator, valve location, feedback device, emergency reaction device, handwheel etc. | |||||||||||||||
