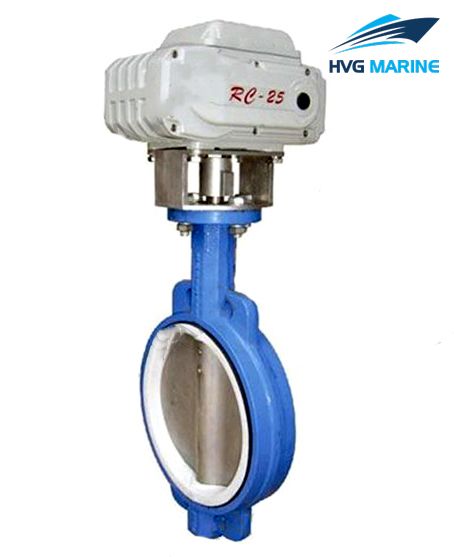

HVG INDUSTRIAL VALVES 0014: Electric Fluorine Control Butterfly Valve
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | |
| 900Kv | 900 | 35 | 60 | 90 | 180 | 270 | 420 | 620 | 1080 | 1700 | 2600 | 3500 | 4600 | 5800 | 7200 | 10900 | 15000 | 19500 |
| Nominal stroke | Adjustable type:600 ,Double-position type:900 | |||||||||||||||||
| Flow characteristic | Approximate precentage | |||||||||||||||||
| Nominal pressure | 1.0,1.0,1.6 Mpa | |||||||||||||||||
| Adjustable extent | 600 15:1, 900 30:1 | |||||||||||||||||
| Actuator | Electric or Pneumatic | |||||||||||||||||
| Flange standard | JB, ANSI, JIS, DIN | |||||||||||||||||
| Valve body material | Cast steel(ZG230-450)+F46,Stainless steel(ZG1Cr18Ni9Ti)+F46 |
| Valve plate | Cast steel(ZG230-450)+F46 etc |
| Valve lever | Cast steel(ZG230-450)+F46 etc |
| Filling material | Polytetrafluoroethylene |
| Seal type | Flexible seal |
| Seal material | Polytetrafluoroethylene |
| Leakage rate | Ⅴ ,Ⅳ |
| Working temperature | -20-180oC,-40-180oC |

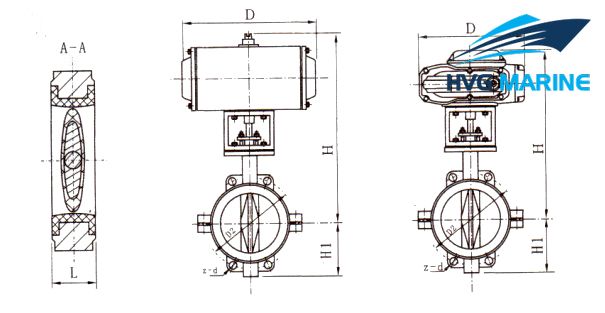

| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | ||
| L | Clamp type | 40 | 43 | 46 | 46 | 52 | 56 | 56 | 60 | 68 | 78 | 78 | 102 | 114 | 127 | 154 | 165 | 190 | |
| Flange type | 106 | 108 | 112 | 114 | 127 | 140 | 140 | 152 | 165 | 178 | 190 | 216 | 222 | 229 | 267 | 292 | 318 | ||
| H1 | 80 | 90 | 95 | 110 | 120 | 135 | 155 | 180 | 210 | 235 | 270 | 310 | 330 | 370 | 420 | 490 | 550 | ||
| GTX | H | Normal type | 404 | 409 | 419 | 429 | 439 | 454 | 469 | 494 | 531 | 556 | 631 | 691 | 781 | 840 | 935 | 975 | 1040 |
| Radiate type | 504 | 509 | 519 | 529 | 539 | 554 | 569 | 594 | 631 | 656 | 931 | 791 | 881 | 940 | 1005 | 1045 | 1110 | ||
| D | 207 | 256 | 380 | ||||||||||||||||
| UNICDHL | H | Normal type | 413 | 418 | 428 | 460 | 470 | 485 | 500 | 525 | 588 | 613 | 755 | 835 | 960 | 990 | 1085 | 1185 | 1250 |
| Radiate type | 513 | 518 | 528 | 560 | 570 | 585 | 600 | 625 | 688 | 713 | 875 | 935 | 1060 | 1090 | 1155 | 1255 | 1320 | ||
| D | 203 | 222 | 294 | 300 | 450 | 630 | 720 | 840 | |||||||||||
