HVG FIRE FIGHTING EQUIPMENT 0381

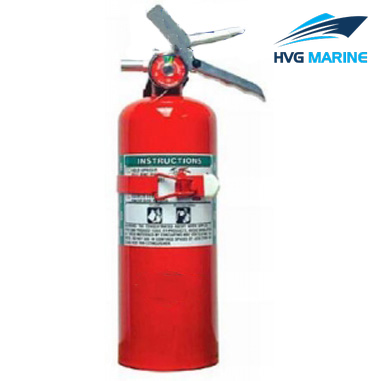

HVG FIRE FIGHTING EQUIPMENT 0381: Halon 1211 fire extinguisher

Halon 1211 fire extinguisher is a kind of high effective, clean extinguisher. This is suitable to extinguish type B/C fire, and mainly filled in mobile extinguisher in the essential spots. This product is a high effective fire retardant with both aromatic bromine and aliphatic bromine. It has excellent heat and light stability. Because of its suitable melting point, It can firstly be melted to be uniform dispersion under normal temperature for plastic processing and can be easier to melt any mix with plastic without the phenomenon of substance stratified and separated out.

Product detail:

Color: Red or the color you want
Material: Steel
Work pressure: 14 Bar
Test pressure: 27 Bar
Out-diameter: 80——–180mm
Cylinder High: 260——–550mm
Cylinder weight: 0.5kg-40kg
Valve: Brass valve without hanger loop
Siphon tube: M16*1.5*220mm

Technical specification:

Halon 1211 Fire Extinguisher parameter

Property of chloride
Formula:	CF2CIBr
Molecular weight:	165.36
B. P.( ° C):	-3.4
Critical temperature,(°C) :	154
Critical Pressure M pa:	4.3
Critical density(kg/m3):	713
Vapor Pressure(20°C),MPa:	0.229
Liquid density,(20°C),kg/m3:	1820
Saturated vapor Density,(20°C),kg/m3	16.84
ODP:	4
Concentrations in extinguishing superficial fire	5%
NOAEL	0.50%
Purity,%≥:	99
Water, mg/kg ≤:	20
Acidity, (as HF),mg/kg ≤:	3
Halo-ion:	pass
Residue on evaporation, mg/kg ≤:	80
