HVG FIRE FIGHTING EQUIPMENT 0373

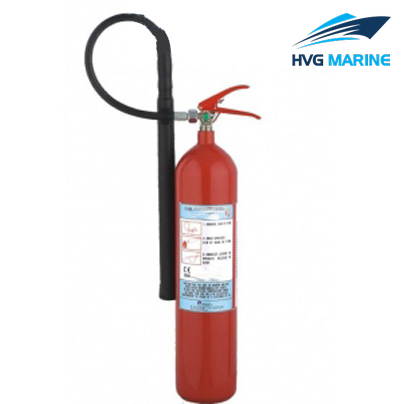

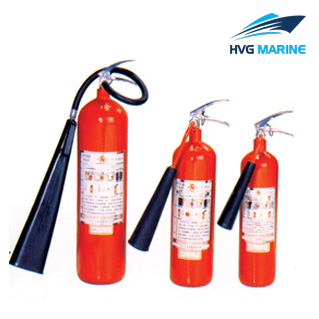

HVG FIRE FIGHTING EQUIPMENT 0373: Portable CO2 Fire Extinguisher

It’s an environment protection, good electrical insulation and great efficiency in extinguishing fire, widely used in the fire protection of power distribution, archive rooms, transforming houses, computer rooms, etc. CO2 is a clean gaseous agent which displaces oxygen. Highest rating for 20 lb (9.1 kg) portable CO2 extinguishers is 10B:C. Not intended for class A fires, as the high-pressure cloud of gas can scatter burning materials. CO2 is not suitable for use on fires containing their own oxygen source, metals or cooking media.

Product detail:

Brand Name: CO2 fire extinguisher
Certification: CE/EN3
Color: Red/ Black or you want
Material: Carbon steel/Alloy Steel/Portable CO2
Size: 1kg 2kg 2.3kg 3kg 4kg 4.5kg 5kg 6kg 7kg 9kg
Temperature range (°C): -20~+60

Technical specification:

Portable CO2 Fire Extinguisher parameter

Product Name	CO2 5kg	CO2 5kg	CO2 2kg	CO2 2kg	CO2 2kg
Out-diameter(mm)	136	136	104	104	116
Cylinder high(mm)	655	660	480	480	384
Cylinder weight(kg)	7.66	8.28	3.78	4.13	3.81
Extinguisher weight(kg)	14.8	15.5	6.84	7.29	6.91
Volume(L)	7.5	7.5	3	3	3
Filling Weight(kg)	5kg CO2	5kg CO2	2kg CO2	2kg CO2	2kg CO2
Temperature range(°C)	-20~+60	-20~+60	-20~+60	-20~+60	-20~+60
Max working pressure(bar)	174	174	174	174	174
Test pressure(bar)	250	250	250	250	250
Material	34CrMo4	34CrMo4	34CrMo4	34CrMo4	34CrMo4
Min wall-thickness(mm)	2.78	2.78	2.29	2.29	2.38
Fire class	89B	89B	34B	34B	34B
Bottom of cylinder	concave	Convex	concave	Convex	concave
