HVG FIRE FIGHTING EQUIPMENT 0356

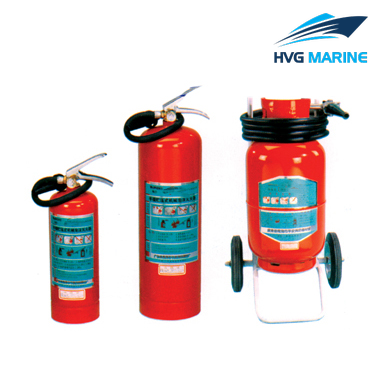

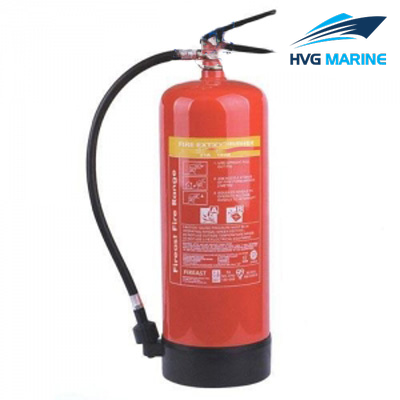

HVG FIRE FIGHTING EQUIPMENT 0356: Portable foam fire extinguisher

Foam fire extinguishers work by covering a burning flammable liquid with a blanket of foam, cutting off the fire’s air supply and preventing the release of flammable vapors. Foam Fire Extinguishers are suitable for the following types of fires: Class A Paper, textiles, wood, most plastics &rubber Class B Flammable liquids. Our firm can supply 1L-9L Portable foam fire extinguisher. Our products are different from the general suppliers’ and our products are always assumed to have the edge on quality.

Product detail

Material: Stainless steel
Standard: CE standard
Foam fire extinguisher size: 1L,2L,3L,4L,6L,9L,12L
Foam fire extinguisher weight: 1kg, 2kg, 3kg, 4kg, 6kg, 9kg, 12kg
Foam fire extinguisher color: Red or the color you want
Range Of Discharge 6-8m
Duration Of Discharge 21-23 sec.

Technical specification:

Portable foam fire extinguisher parameter

Capacity	1L	2L	3L	4L	6L	9L	12L
Out-Dia.(mm)	85	110	130	140	160	180	180
Volume (L)	1.29	2.4	3.9	5.4	7.8	10.5	13.88
Cylinder-length (mm)	270	302	346	410	450	485	621
Cylinder Weight (kg)	0.66	1.17	1.69	2.1	2.95	3.6	4.4
Extinguisher weight(kg)	2.2	3.8	5	6.7	9.5	14	18
Filling weight (kg)	1	2	3	4	6	9	12
Working pressure (bar)	14	14	14	14	14	14	14
Test pressure (bar)	27	27	27	27	27	27	27
Temperature Range	0~60	0~60	0~60	0~60	0~60	0~60	0~60
Min Wall-thickness	0.78	1.07	1.13	1.13	1.23	1.3	1.3
Material	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304
Fire rate	5A21B	8A34B	13A70B	13A89B	27A144B	34A183B	43A233B
