HVG FIRE FIGHTING EQUIPMENT 0347

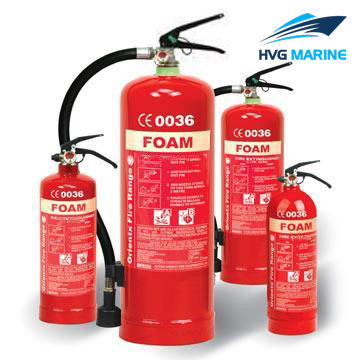

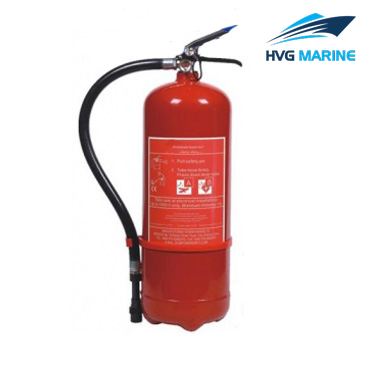

HVG FIRE FIGHTING EQUIPMENT 0347: Stored Pressure foam fire extinguisher

Stored Pressure foam fire extinguishers are very common fire extinguisher. Depending on the agent used, different propellants are used. The water and foam extinguishers typically use air as propellants.

Product detail:

Certificate: UL, CE, ISO9001
Color: Red or other customized color
Name: store pressure foam fire extinguisher
Nozzle: PVC Rubber
Handle: Tin Cylinder material: CK45
Valve material: Brass
Temperature range: -30℃~+55℃
Standard: American, Europe, Asia, Middle East
Special Service: OEM, Cylinder Size suit your requires

Technical specification:

Stored Pressure foam fire extinguisher

Type	1.3kg	2kg (A)	2.3kg(A)	5kg (B)	6kg (A)	9kg (A)
Out Diameter (mm)	105	105	105	136	136	154
Height(mm)	335	450	520	585	760	870
Volume (L)	2+0.21	3+0.30	3.5+0.35	6.67+0.67	9.0+0.9	13.5+1.35
Min.Thickness(mm)	2.7	2.25	2.25	3.4	2.6	3
Material	34CrMo4	34CrMo4	34CrMo4	34CrMo4	34CrMo4	34CrMo4
Working Pressure (Bar)	167~174	167~174	167~174	167~174	167~174	167~174
Test Pressure(Bar)	250	250	250	250	250	250
Fire rating	21B	34B	34B	89B	89B	144B
Extinguisher weight (kg)	4.15	6.05	7	14.1	16.7	22.8
