HVG FIRE FIGHTING EQUIPMENT 0323

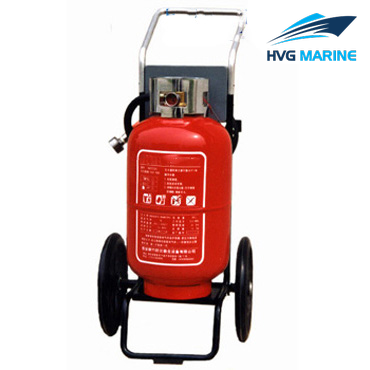

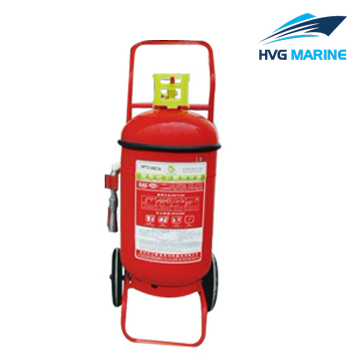

HVG FIRE FIGHTING EQUIPMENT 0323: Wheeled water based fire extinguisher

Nowadays, wheeled water based fire extinguisher products are applied in many fields including fire stations, supermarkets, vehicles, marines, buildings, and railway / bus stations as well as in the home etc.

This series of fire extinguisher has high efficiency of extinguishing speed. In case of fire, the people can push the wheeled water base fire extinguisher to the burning place and put out the fire quickly.

Product detail:

Extinguisher type: wheeled fire extinguisher
Diameter: 325mm/406mm
Cylinder High: 830mm/ 908mm /1150mm
Volume: 25L /50L /100L
Filling Agent: Powder/ Foam/Water
Temperature: -20°C ~ +60°C
Material: Stainless steel SUS304
Color: red

Technical specification:

Wheeled water based fire extinguisher parameter

TYPE	HVG/25	HVG/50	HVG/100
Agent	3%AFFF	3%AFFF	3%AFFF
Capacity	25L	50L	100L
Propellant	N2	N2	N2
Working pressure	1.2MPa	1.2MPa	1.2MPa
Test pressure	2.1MPa	2.1MPa	2.1MPa
Discharge time	30s	40s	70s
Range	6.0m	6.0m	6.0m
fire rating	4A;144 B	55A ⅡB C	55A 3B C
