HVG FIRE FIGHTING EQUIPMENT 0278

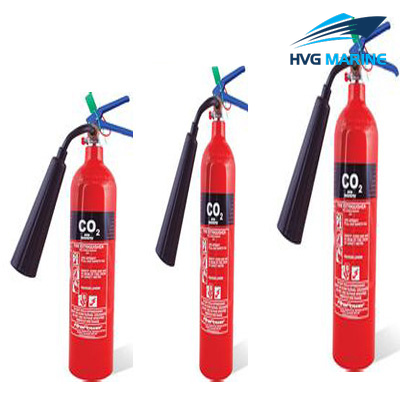

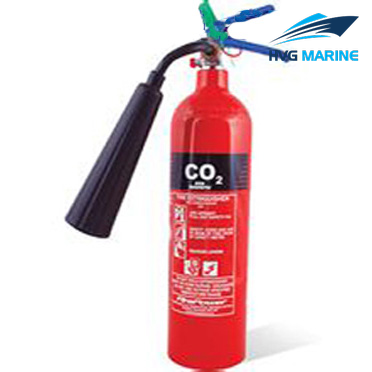

HVG FIRE FIGHTING EQUIPMENT 0278: Alloy steel CO2 fire extinguisher

We specialize in producing and researching carbon dioxide fire extinguisher. The cylinder materials are Stainless Steel and alloy-steel. Alloy steel is steel that is alloyed with a variety of elements in total amounts between 1.0% and 50% by weight to improve its mechanical properties. And alloy steel has higher hardness, excellent wear resistance, corrosion resistance and corrosive wear resistance, so it is used widely in our fire extinguisher product.

Product detail:

Item: Alloy steel CO2 fire extinguisher
Color: red or at customers’ option
Size: 1kg, 2kg, 3kg, 4kg, 4.5kg, 5kg, 50kgetc
Retirement Life: 10 Years
Temperature Range: -30° C ~55° C
Carton Labels: Standard or OEM

Technical specification:

Alloy steel CO2 fire extinguisher parameter

Co2 fire extinguisher	2KG	2.3KG	2KG	2.3KG	3KG	3KG	5KG
Out-diameter(mm)	104	104	105	105	104	136	152
Volume(L)	3	3.5	2.67	3.1	4.5	4.5	7.5
Cylinder length(mm)	465	530	430	480	660	425	555
Cylinder weight(kg)	2.83	3.31	3.31	4.22	4.29	4.7	11
Extinguisher weight(kg)	5.45	6.26	5.69	7.17	7.94	8.35	16.65
Co2 filled weight(kg)	2(-0.1)	2.3(-0.12)	2(-0.1)	2.3(-0.15)	3(0.15)	4.5(-0.22)	5(-0.25)
Max working pressure(bar)	169	169	216	216	169	168	168
Test pressure(Bar)	250	250	315	315	250	250	250
Min wall-thickness(mm)	2	2	2.6	2.6	2	5	5
Packing size(cm)	25.525.547.5	25.525.554	25.525.544	22.522.549	22.5* 22.5*6	171764	171769
