HVG FIRE FIGHTING EQUIPMENT 0211

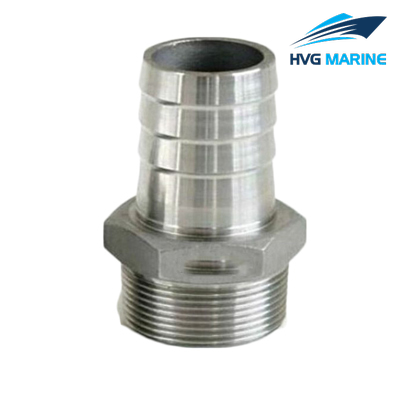

HVG FIRE FIGHTING EQUIPMENT 0211: High-quality steel Hose Tail

This type of High-quality steel Hose Tail is coupling with high quality. This Hose Tails can be used for a range of different media such as water oil and air and are predominantly used in the hydraulic and pneumatic industries. And it is available in a variety of thread combinations and connections.

Product detail:

Material: Aluminum/ Brass/ stainless steel
Other name: Aluminum/ Brass/ stainless steel Hose Tail
Size: 1′ 2′ 3′ 4′
Technics: Casting
Casting method: Gravity casting
Specification: MIL-C27487
Max Pressure at 20 Degrees Celsius: 16 Bar
Connection: hose shank
Shape: round
Head Code: round

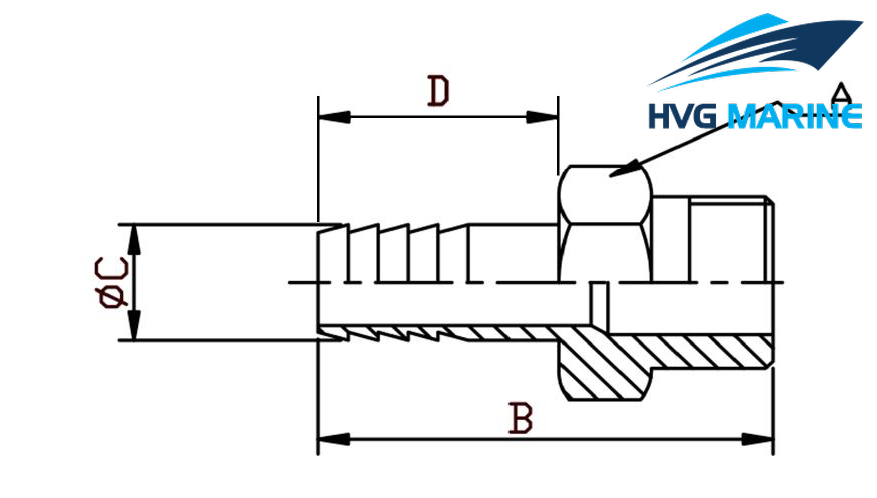

Technical specification:

High-quality steel Hose Tail Tail index

DIM	A	B	D	Kg/100
inch	mm	mm	mm
1/2	23.2	6.3	38.5	6.05
3/4	29	66	38	10.05
1	34.8	71	42.2	21.25
1 -1/4	45	77.8	46	24.75
1 -1/2	50	89.5	55	38.15
2	61.3	96.2	59.5	60.5
2 -1/2	78.5	116.5	72	92.85
3	93.5	128	80.6	138.7
4	118.5	138	84	222.9
