    HVG FIRE FIGHTING EQUIPMENT 0209: Storz Blank Cap with Cap

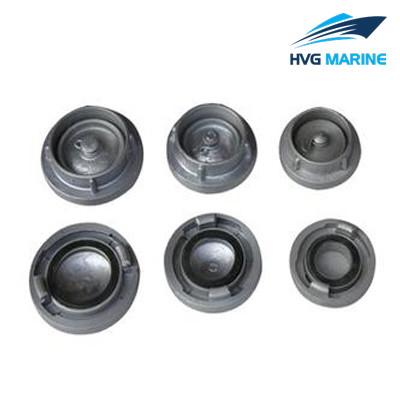

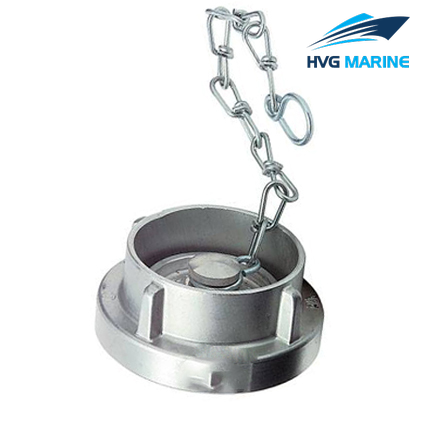

    Storz Blank Cap with Cap is usually made of brass or aluminium. It can be manufactured by casting for general hose connection and low pressure applications, but for firefighting, it is better to use forgings to guarantee the safety and durability of the Storz Blank Cap with Cap.

    Product detail:

    • Material: Aluminum /brass
    • Technics: Casting
    • Casting method: Gravity casting
    • Standard: DIN 14301, DIN 86202, NEN3374
    • Surface treatment: sand blast
    • Connection: grooved
    • Head Code: round

    Technical specification:

    • Storz Blank Cap with Cap index

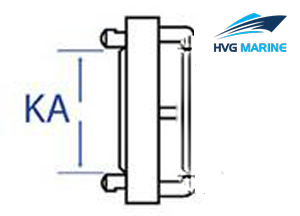

    Size KA(mm) Head
    DN25 31 STORZ-D
    DN38 52 1-1/2’STORZ
    DN52 66 STORZ-C
    DN65 81 2-1/2’STORZ
    DN75 89 STORZ-B
    DN100 115 4’STORZ
    DN110 133 STORZ-A
    DN125 148 5’STORZ
    DN150 160 6’STORZ
