    HVG ELECTRIC HOIST 0008

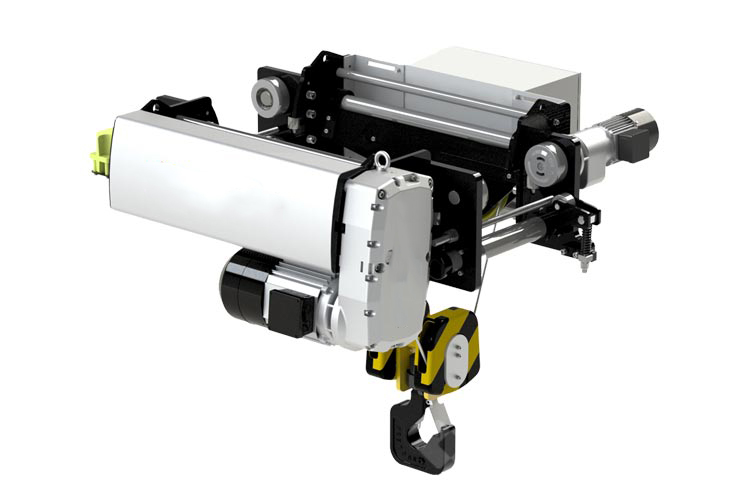

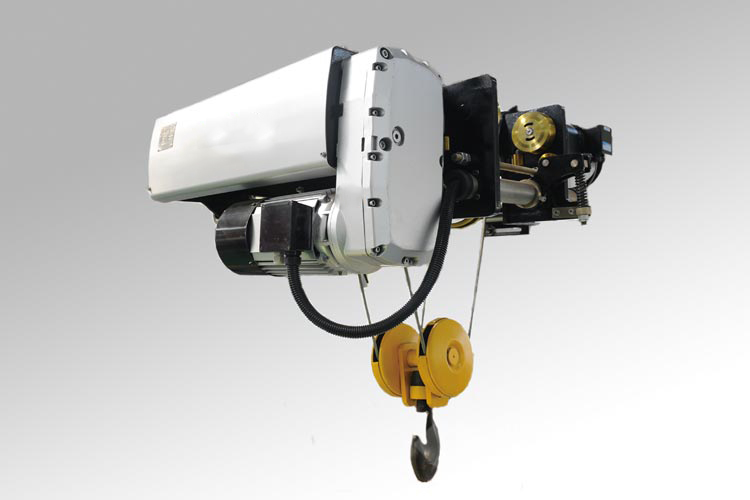

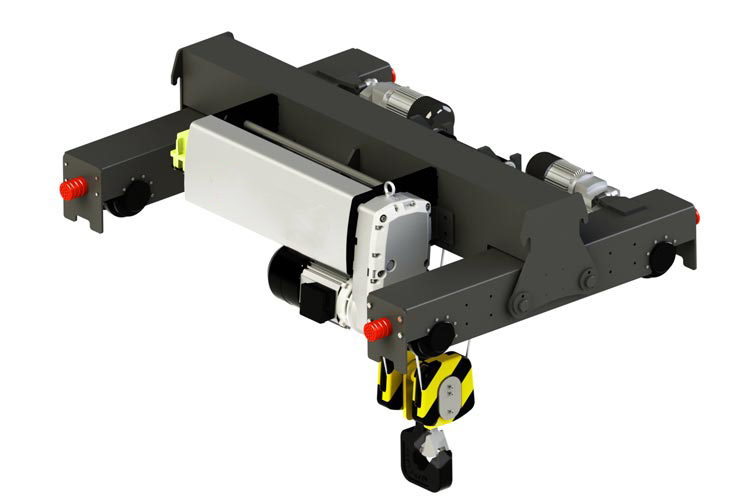

    ND Type Wire Rope Electric Hoist

    • Capacity: 1 ~ 80t
    • Working Class: M4/M5/M6/M7
    • Lifting Height: 6 ~ 18 m
    • Power Supply: 3-Phase AC, 50 HZ, 380V
    • Applications:Foundry, metallurgy, hydropower, aerospace, shipbuilding, automotive, coal, petrochemical and other industries

    Description of ND Type Wire Rope Electric Hoist
    ND Type Wire Rope Electric Hoist is a new generation electric hoist which fabricated according to IOS, GB, FEM, DIN, BS standards.

    Technical specification:

    • Technical Data of ND Type Wire Rope Electric Hoist
    Capacity
    (t)    		 Working
    Class    		 Lifting
    Height
    (m)    		 Lifting
    Speed
    (m/min)    		 Rope
    Reeving    		 Travelling Speed
    (m/min)    		 Main bean
    width
    (mm)    		 Lifting
    side width (mm)    		 Running
    site width (mm)    		 Length
    (mm)    		 h(mm) Max
    Wheel load
    (kN)    		 Weight
    (kg)
    1.6 M6 6 1.6/10 2/1 2 ～ 20 200 ～ 300 500 450 930 400 6.1 300
    9 500 450 1100 400 6.2 335
    12 500 450 1270 400 6.3 370
    2.5 M6 6 0.8/5.0 4/1 2 ～ 20 200 ～ 350 500 450 1180 430 9.1 315
    9 500 450 1400 430 9.2 350
    12 500 450 1620 430 9.3 385
    3.2 M5 6 0.8/5.0 4/1 2 ～ 20 250 ～ 350 500 450 1180 450 11.5 335
    9 500 450 1400 450 11.6 370
    12 500 450 1620 450 11.7 405
    6.3 M5 6 0.8/5.0 4/1 2 ～ 20 200 ～ 300 490 450 1170 500 22 400
    9 490 450 1400 500 22.1 450
    12 490 450 1630 500 22.2 500
    8 M6 6 0.8/5.0 4/1 2 ～ 20 200 ～ 350 550 540 1120 650 28 580
    9 550 540 1290 650 28.1 610
    12 550 540 1460 650 28.2 640
    10 M5 6 0.8/5.0 4/1 2 ～ 20 250 ～ 350 550 540 1120 650 34.7 580
    9 550 540 1290 650 34.8 610
    12 550 540 1460 650 34.9 640
    10 M6 6 0.66/4.0 4/1 2 ～ 20 200 ～ 350 560 550 1140 700 34.7 650
    9 560 550 1320 700 34.8 690
    12 560 550 1500 700 34.9 730
    12.5 M5 6 0.66/4.0 4/1 2 ～ 20 250 ～ 350 560 550 1140 700 43.3 660
    9 560 550 1320 700 43.4 700
    12 560 550 1500 700 43.5 740
