HVG DECORATIVE MATERIAL 0010

HVG DECORATIVE MATERIAL 0010: Type M Composite Rock Wool Wall Panel with Cable Slot

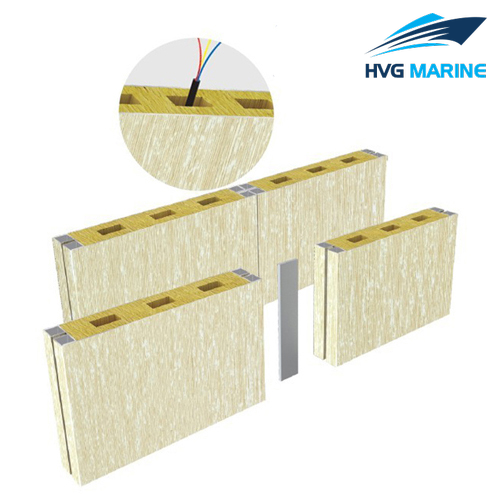

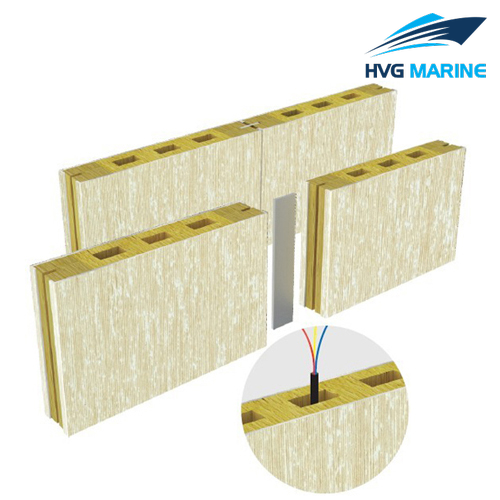

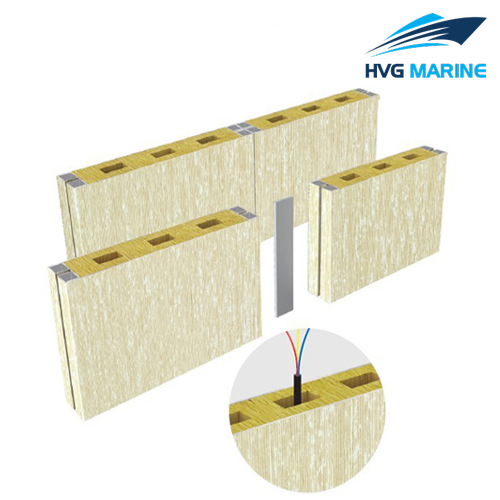

This wall panel is designed with cable slot. It is type M ship composite rock wool wall board. Our company can supply two models of this type wall panel. They differ in fire protecting rating and weight. One is B-15 and 16.7kg/m², while the other is B-15/B-30 and 16.4kg/m². This type marine wall panel is made of PVC film/galvanized steel sheet on the surface and rock wool in the core. With the properties of fire resistance and heat insulation, this product is widely used in the cabin, meeting room, and recreational room on the ships.

Features:

1. Ship rock wool wall panel
2. Model: B50MD, B50MD(Ⅱ)
3. Fire protecting rating: B15, B-30
4. Surface finish: PVC film or galvanized steel sheet
5. Core material: rock wool
6. Thickness: 50mm
7. Normal width: 550mm
8. Required length, max. 3500mm
9. Certificates: ABS, CE, BV, KR, CCS, etc.
10. OEM service available

Technical specification:

Specifications:

Model	B50MD	B50MD(Ⅱ)
Fire resistant rating	B-15	B-15/B-30
Weight	16.7kg/m²	16.4kg/m²
Sound reduction	-dB	-dB
Thermal transmittance	0.55Kcal/m²h·°C
Core material	Rock wool 150kg/m³
Surface finish	PVC film(150μ,low flame spread) or galvanized steel
Dimension	50mm( t )×550mm( w )×length (max.3500mm)
Tolerances	thickness(-1, 0), length±3, width(-1, 0)
