HVG DECORATIVE MATERIAL 0004

HVG DECORATIVE MATERIAL 0004: Marine Moisture Proof Panel

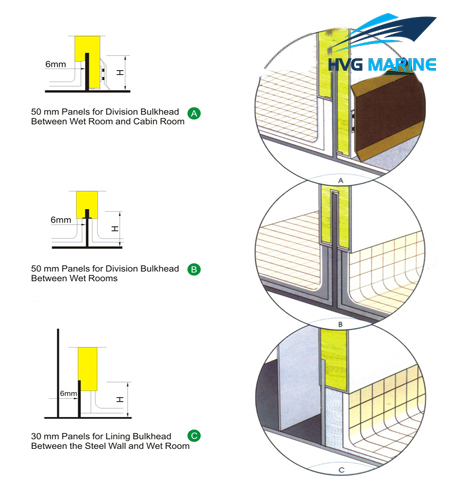

This product is moisture proof panel used for division bulkhead and lining bulkhead of various ships. We can supply three types of this marine panel: 50mm thick panels for division bulkhead between wet room and cabin room, 50mm thick panels for division bulkhead between wet rooms, 30mm thick panels for lining bulkhead between the steel wall and wet room. Our moisture proof panel is fire resistant and approved by certificates like CCS, BV, ABS, DNV, NK, etc.

Features:

1. Ship moisture proof panel
2. Fire protecting rating: B-15, B-0
3. Thickness: 50mm(HS-MP001), 50mm(HS-MP002), 30mm(HS-MP003)
4. Surface material: PVC/PET film laminated or galvanized steel sheet
5. Core material: rock wool
6. Certificates: ABS, CCS, DNV, KR, BV, etc.

Technical specification:

Specifications:

Product NO.	HS-MP001	HS-MP002	HS-MP003
Type	Between wet room and dry room	Between wet rooms	Between the steel wall and wet room
Thickness	50mm	50mm	30mm
Fire resistance rating	B-15	B-15/B-0	B-0
Surface finish	PVC/PET film laminated or galvanized steel sheet
Core material	Rock wool 150kg/m³
Thermal transmittance	0.58Kcal/㎡h·℃	0.58Kcal/㎡h·℃	1.14 Kcal/㎡h·℃
