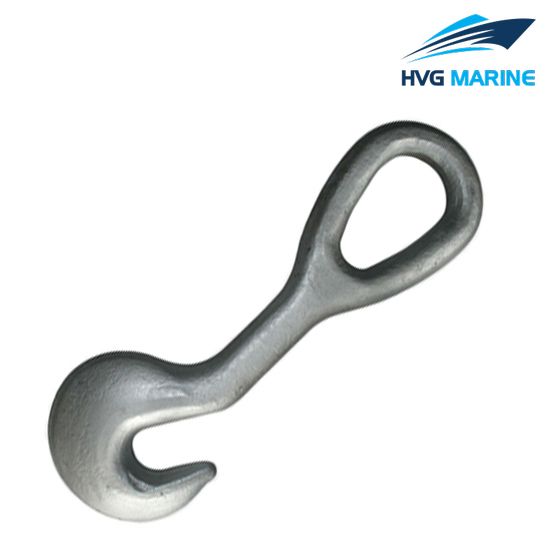

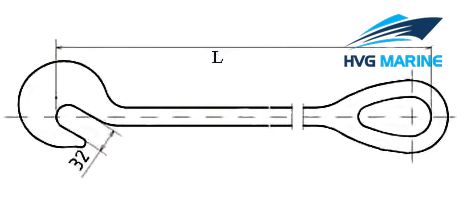

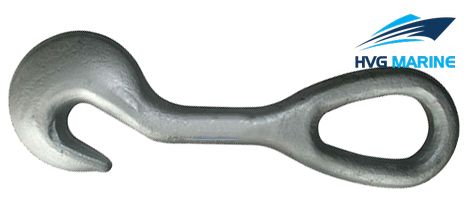

HVG CONTAINER-SECURING FITTING 0091: Container Extension Rod
There are two kind of types of container extension rod: knob type and hook type. All of them can be used to fix the container on shipping deck through connecting turnbuckle, lashing rod together.You should extend a lashing rod when securing a high cube container, then fit the base of a lashing rod and connect to the turnbuckle.
Product Details:
- 1. Material:Forged steel
- 2. Type: Single type
- 3. Surface treatment: Hot dip galvanized
- 4. Length: 310mm, 420mm, 600mm
- 5. Weight:3.9KG, 4.3KG, 4.9KG
- 6. Finish: Shop primer
- 7. Application: Container, shipping
- 8. M.B.L tension: 500KN
- 9. Customized design is available
- 10. All items are proves by major classification society
Our scope of container fittings are the follows:
D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.
