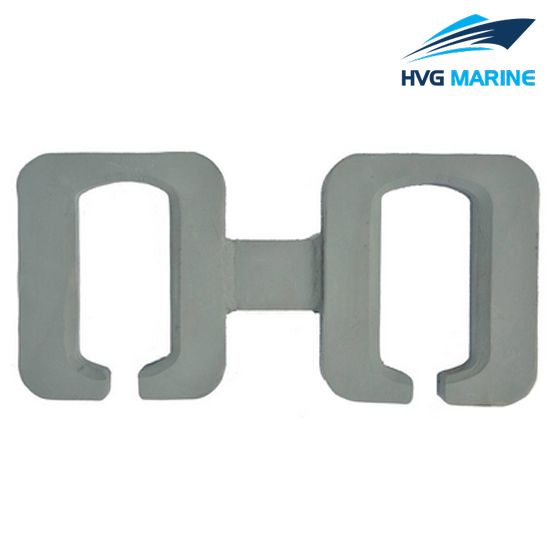

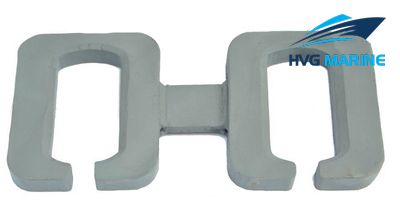

HVG CONTAINER-SECURING FITTING 0085: Container Doubling Plate
Container doubling plate is used in the bottom of cabin and working with single cone to fix container. All the container spare parts and securing system can meet the ISO standard. And special specifications and marks can be made according to customers requirements.
Product Details:
- 1. Material: Ship building steel
- 2. Type: Double type
- 3. Weight:5.4KG
- 4. Finish: Shop primer
- 5. Application: Container, shipping
- 6. M.B.L tension: 500KN
- 7. M.B.L shear: 420KN
- 8. M.B.L compression: 2000KN
- 9. Customized design is available
- 10. All items are proves by major classification society
Our scope of container fittings are the follows:
D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.
