HVG CONTAINER-SECURING FITTING 0072

HVG CONTAINER-SECURING FITTING 0072: 20 Foot Open Top Container

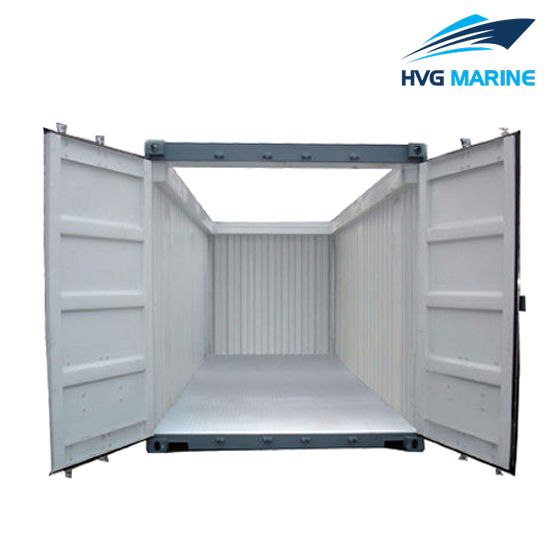

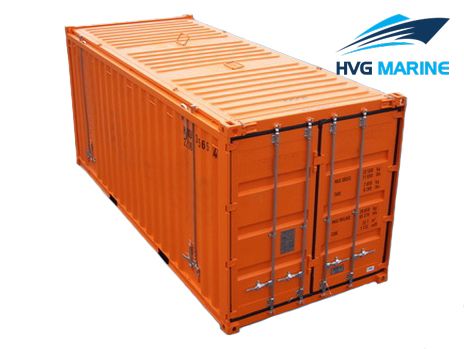

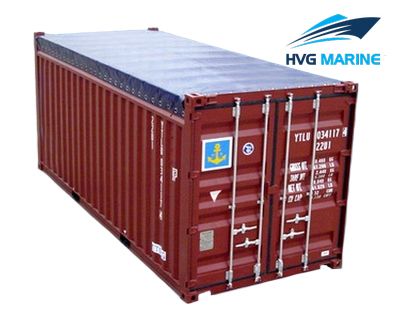

Open top container can be devided into two kinds: the soft open top container and the hard open top container. The roof of soft open top container could be fully opened with roof bows and soft tarpaulin. Hard open top container is equipped with a removable steel roof that could be lifted by forklift truck., which make it suitable for the rapid loading and unloading from top.

Product Details:

1. Type: Opem top container
2. Material: Carbon steel
3. External Dimension: 6058*2438*2591mm
4. Internal Dimension: 5898*2352*2348mm
5. Maximum gross weight: 30480KG
6. Tare Weight: 2400KG
7. Maximum payload: 28040KG
8. Allowing Stacking Weight: 192000KG
9. Finish: Painted
10. Color: as your requirement
11. Certificate: CCS, BV, GL, ABS

Technical specification:

Specification: HS20T

Hard Open Top Container		20ft
External(mm)	Length	6058
	Width	2438
	Height	2591
Internal(mm)	Length	5898
	Width	2352
	Height	2348
Door Opening	Width	2340
Door Opening	Height	2266
Roof Opening	Width	2130
Roof Opening	Height	5416
Max.Gross Weight(KG)		30480
Tare Weight(KG)		3200
Max. Payload(KG)		27260
