HVG CONTAINER-SECURING FITTING 0030: Light Duty Racking

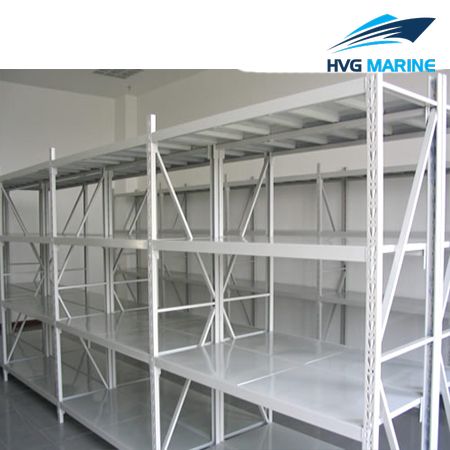

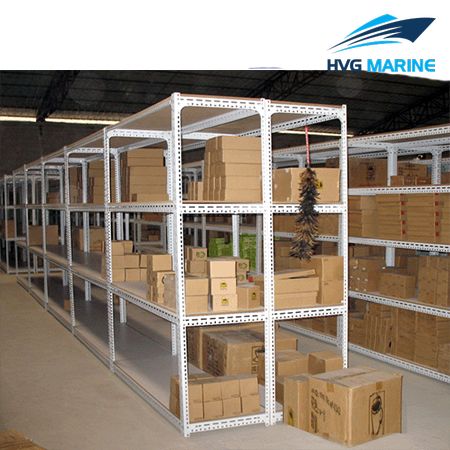

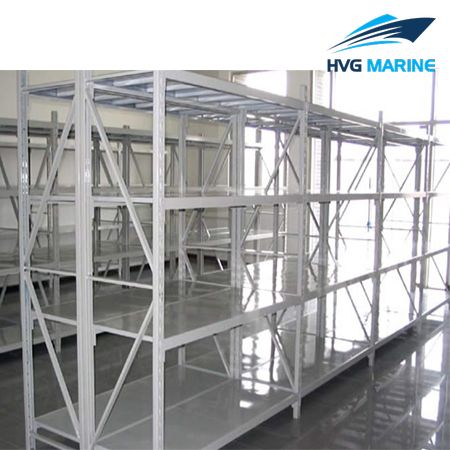

Light duty racking is also called angle slotted steel racking.It is assembled through insertion connection.It is easy to install and remove.The installation is free welding and boltless.Steel plate can be increased and reduced freely.Any adjustment for steel plate is available to meet various requirements.Our light duty racking is specially suitable for the electrical, light industry, supermarket, culture, education industry and other warehouse storage.

This kind of rack is the most versatile and the most cost saving racking.The average load bearing for each layer is about 0-200KG.The length dimension can be custom-made.Column size is 50mm*30mm(thickness 0.8~1.5mm).Beam size is 50mm*30mm(thickness 0.8~1.5mm).Laminate thickness is 0.4~1.0mm.Our light duty racking can be custom-made according to your special requirements.For any more information,please feel free to contact us directly.Best service is available for you.

Features of Light Duty Racking:

Light weight
Heavy load capacity
Artistic shape and freely to assemble and disassemble

Technical specification:

Mode of Light Duty Racking:

Model	Size(length*width)(mm)	Capacity of each layer(kg)
NL101	900×300	100
NL102	900×450	150
NL103	900×600	200
NL104	1200×450	150
NL105	1200×600	150
NL106	1500×450	100
NL107	1500×600	100
NL108	1800×450	100
NL109	1800×600	100
Size of upright(mm)	Angle steel	Pitch	Height
Size of upright(mm)	38×38×1.8,57×38×1.8	50	1.5-3m
