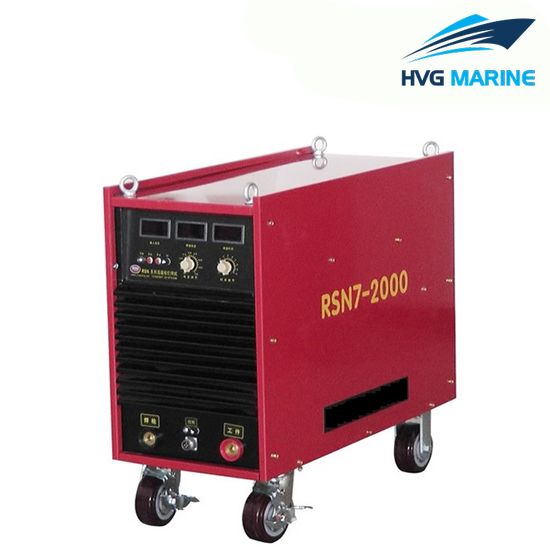

HVG OTHER INDUSTRIAL EQUIPMENT 0178: Stud Welding Machine Price List
| Item | RSN7-1600 | RSN7-2000 | RSN7-2500 | RSN7-3150 |
| welding range | Φ4mm—Φ20mm | Φ4mm—Φ24mm | Φ4mm—Φ28mm | Φ4mm-Φ36mm |
| welding current | 200A—1600A | 200A—2000A | 200A—2500A | 300A—3150A |
| welding time | 0.1S—3S | 0.1S—3S | 0.1S—3S | 0.1S—3S |
| welding speed | Φ20 10pcs/minute | Φ24 10pcs/minute | Φ28 10pcs/minute | Φ36 8pcs/minute |
| input power | AC 3˜280V—440V | AC 3˜280V—440V | AC 3˜280V—440V | AC 3˜280V—440V |
| rated input power | 50KW | 60KW | 80KW | 100KW |
| power switch | 100A | 125A | 160A | 225A |
| protect grade | Ip23 | Ip23 | Ip23 | IP23 |
| cooling way | F | F | F | F |
| dimension(L/W/H) | 890x368x560mm | 890x398x680mm | 890x398x680mm | 890x398x800mm |
| weight | 98KG | 126KG | 135KG | 168 |
| Item | RSN7-2500-2 | RSN7-3150-2 | RSN7-4000-2 | |||
| operation situation | one gun | dual guns | one gun | dual guns | one gun | dual guns |
| welding range | Φ6-Φ28 | Φ4-Φ18 | Φ6-Φ36 | Φ4-Φ20 | Φ6-Φ46 | Φ4-Φ24 |
| welding current | 400A-2500A | 300A-1250A | 400A-3150A | 300A-1550A | 600A-4000A | 400A-2000A |
| welding speed | Φ28
8pcs/minute |
Φ18 8pcs/minute | Φ36
8pcs/minute |
Φ20 8pcs/minute | Φ46 8pcs/minute | Φ24
8pcs/minute |
| welding time | 0.1S-3S | 0.1S-3S | 0.1S-3S | |||
| input power | AC 3˜300V-440V | AC 3˜300V-440V | AC 3˜300-440 | |||
| rated input power | 90KW | 120KW | 150KW | |||
| power switch | 160A | 225A | 250A | |||
| protect grade | Ip23 | Ip23 | Ip23 | |||
| cooling way | F | F | F | |||
| dimension(L/W/H) | 960x418x760mm | 990x418x800mm | 990x418x800mm | |||
| weight | 168KG | 180KG | 188KG | |||
