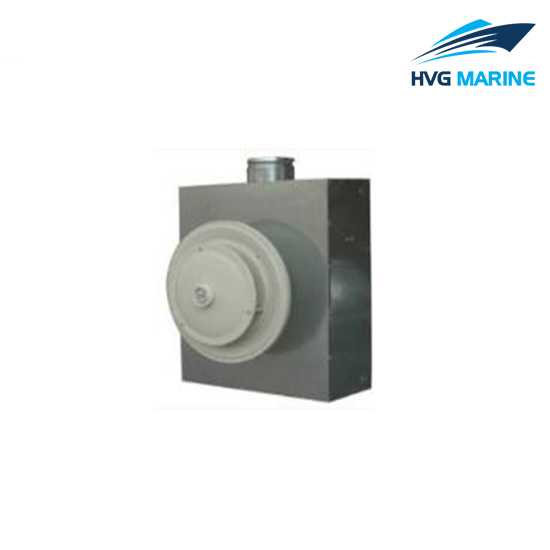

HVG MARINE VENTILATION EQUIPMENT 0033: Máy khuếch tán gió âm trần CMP

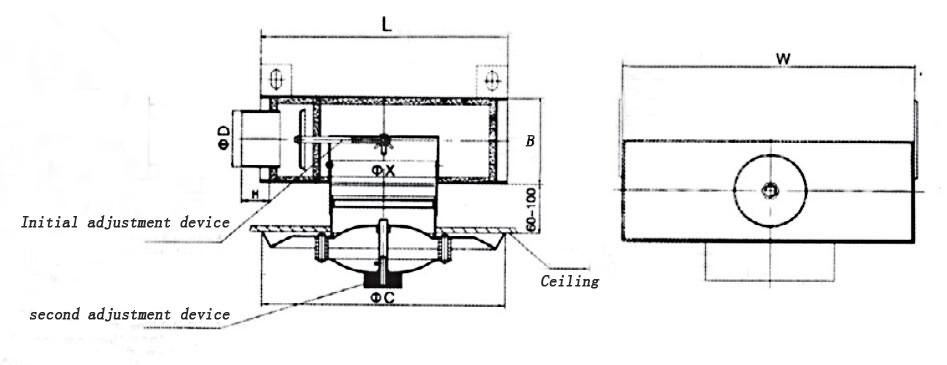

Bản vẽ:
HVG MARINE VENTILATION EQUIPMENT 0033
Technical specification:
- Main Specification
|
Specification |
CMP-15 |
CMP-17 |
CMP-20 |
CMP-25 |
|
Inlet DN(D) |
DN100 |
DN100 |
DN125 |
DN125 |
|
Outlet ΦX |
Φ150 |
Φ170 |
Φ200 |
Φ250 |
|
L |
550 |
550 |
550 |
600 |
|
W |
450 |
450 |
450 |
500 |
|
B |
160 |
160 |
180 |
200 |
|
Round diffuser ΦC |
Φ395 |
Φ395 |
Φ395 |
Φ475 |
|
Flow-rate m3/h |
0-250 |
0-300 |
0-380 |
0-500 |
|
Ceiling opening |
Φ170 |
Φ190 |
Φ220 |
Φ270 |
